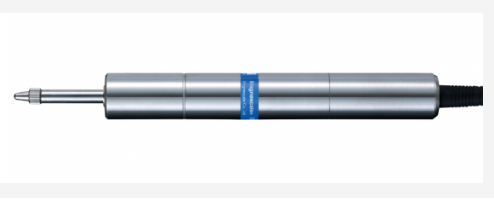

日本MAGNESCALE索尼測量儀DK50PR5

日本MAGNESCALE索尼測量儀DK50PR5

Product TOP

Product lineup capable of measuring up to 205 mm.
The robust structure creates superior environmental resistance and rigidity, and is able to be used in a wide range of applications.

• Measuring range : 10 mmm, 25 mm, 50 mm, 100 mm, 155 mm, 205 mm

• Maximum Resolution : 0.5 μm

• Accuracy : 2 μm p-p to 6 μm p-p (depends on the model)

• Dustproof, dripproof, and oilproof construction. Good environmental resistance. (P type)

• High measuring force (DK10/25/50/100P type) : 4.9 N to 9.3 N (depends on the model)

• Low measuring force (DK10/25/50/100N type) : 0.3 N to 2.7 N (depends on the model)

• Measurement can be performed by adsorbing it to the moving table with the attached magnetic adsorption type feeler (DK155/205).

• Built-in reference point

• Output signal: A/B/reference point (voltage-differential line driver output)

• Specifications

• Specifications
  *1 The resolution setting needs to be made when connecting to the LT30 series, MG series, and LY70 series. For details, please refer to the respective instruction manual. *2 The mass indicated is the total mass excluding the cable and interpolation box. Magnescale reserves the right to change product specifications without prior notice.
  Model		DK10NR5	DK10PR5	DK10PLR5
  Output		A/B/reference point, voltage-differential line driver output (conforming to EIA-422)
  Maximum resolution*1		0.5 μm
  Measuring range		10 mm
  Accuracy (at 20 °C)		2 μm
  Measuring force (at 20 °C)	Upward	0.3 ±0.25 N	4.9 N or less
  	Horizontal	0.6 ±0.3 N	4.9 N or less
  	Downward	0.8 ±0.35 N	4.9 N or less
  Reference point		at 1 mm ±0.5 mm position of spindle movement
  Maximum response speed		250 m/min
  Vibration resistance		150 m/s2 (10 to 2,000 Hz)
  Impact resistance		1,500 m/s2 (11 ms)
  Protection grade		IP50	IP64
  Operating temperature		0 to +50 °C
  Storage temperature		?20 to +60 °C
  Power supply		DC +5 V ±5 %
  Power consumption		1 W or less
  Output cable length		Approx. 2.5 m
  Stem diameter		φ20 0?0.013mm
  Mass*2		Approx. 230 g
  Feeler		DZ-122 : carbide ball tip, mounting screw M2.5
  Accessories		+P M4x5 screw (2 pcs.), instruction manual

• Specifications
  *1 The resolution setting needs to be made when connecting to the LT30 series, MG series, and LY70 series. For details, please refer to the respective instruction manual. *2 The mass indicated is the total mass excluding the cable and interpolation box. Magnescale reserves the right to change product specifications without prior notice.
  Model		DK25NR5	DK25PR5	DK25NLR5	DK25PLR5
  Output		A/B/reference point, voltage-differential line driver output (conforming to EIA-422)
  Maximum resolution*1		0.5 μm
  Measuring range		25 mm
  Accuracy (at 20 °C)		2 μm p-p
  Measuring force (at 20 °C)	Upward	0.4 ±0.3 N	4.9 N or less	0.4 ±0.3 N	4.9 N or less
  	Horizontal	0.7 ±0.35 N	4.9 N or less	0.7 ±0.35 N	4.9 N or less
  	Downward	1 ±0.4 N	4.9 N or less	1 ±0.4 N	4.9 N or less
  Reference point		at 1 mm ±0.5 mm position of spindle movement
  Maximum response speed		250 m/min
  Vibration resistance		150 m/s2 (10 to 2,000 Hz)
  Impact resistance		1,500 m/s2 (11 ms)
  Protection grade		IP50	IP64	IP50	IP64
  Operating temperature		0 to +50 °C
  Storage temperature		?20 to +60 °C
  Power supply		DC +5 V ±5 %
  Power consumption		1 W or less
  Output cable length		Approx. 2.5 m
  Stem diameter		φ20 0?0.013mm
  Mass*2		Approx. 300 g
  Feeler		DZ-122 : carbide ball tip, mounting screw M2.5
  Accessories		+P M4x5 screw (2 pcs.), instruction manual
