日本MAGNESCALE索尼探頭DK25PR5
發布時間：2024-11-20

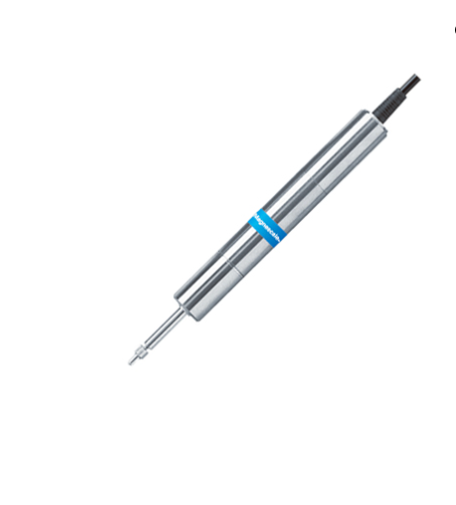

日本MAGNESCALE索尼探頭DK25PR5
Magnescale DK25PR5 25mm Stroke Digital Probe w/Spring Push, 20mm robust probe diameter, 0.5um resolution, 2.0um Accuracy and A/B Quad Output
Travel (25mm)
Body Style (Straight)
Probe Spindle Movement (Spring Push)
Body Diameter (20mm)
A/B Quadrature output (EIA-422 Line Driver)
Accuracy (2.0um)
Resolution (0.5um)
Response speed (250m/min)
Protection (IP64)
Power requirements (5vdc @ 350mA)
Cable Length (2 meters)
Optional extension cables CE22, CE08, CE27 & CKT Series
NOTE: The Magnescale DK25PR5 is compatible with MG80 Interface Module for multi-probe applications or LT30 Display
