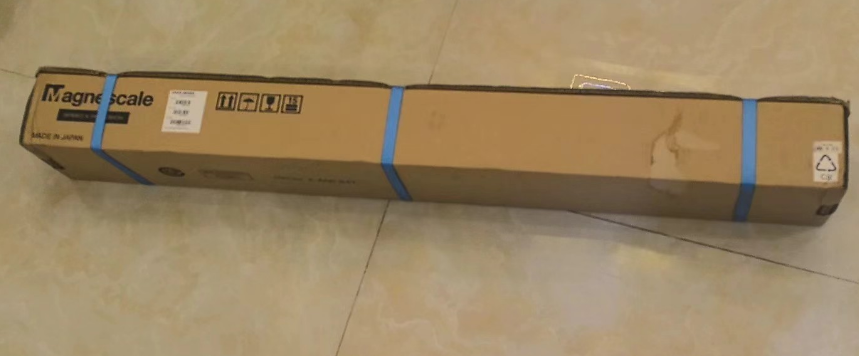

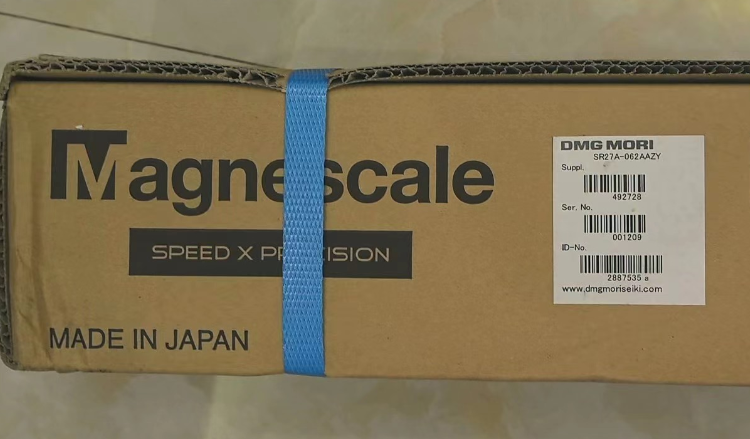

日本Magnescale索尼光柵尺SR27A-062AAZY
日本Magnescale索尼光柵尺SR27A-062AAZY
Magnescale
SR27A
Slim type allows installation in narrow spaces Magnetic system enables use even in environments with condensation, oil, and other adverse coditions Supports the communication protocol of each supporting manufacturer Same thermal expansion as iron Protocol : FANUC, Mitsubishi, YASKAWA, SIEMENS AG ＊For resolution of 0.005 μm, please contact our sales department. Magnescale reserves the right to change product specifications without prior notice. Product TOP
Specifications
Specifications Model name SR27A-×××○□AX SR27A-×××○□BX
SR27A-×××○□DXSR27A-×××○□FX SR27A-×××○AZY Effective length (L: mm) 70 to 2,040 Thermal expansion coefficient 12±1 × 10-6/ °C Accuracy (at 20°C) (3+3L/1,000) μmp-p or (5+5L/1,000) μmp-p,
L: Effective length (mm)Reference point Center, or user-selected position (Set at factory shipping) Fixed to center Center, or user-selected position (Set at factory shipping) Fixed to 10 mm from left end of
effective lengthOutput signal Absolute serial bidirectional signal, compliant with EIA-485 Compliant with DRIVE-CLiQ Compatible controllers FANUC α/αi interface compatible Mitsubishi Electric Yaskawa Electric SIEMENS AG Resolution Selectable from 0.005*, 0.01, 0.05, 0.1, 0.5 and 1 μm (Factory set) Selectable from 0.005*, 0.01, 0.05 and 0.1 μm (Factory set) Selectable from 0.01, 0.05, λ/32768 and λ/4096 μm (λ=320)(Factory set) 0.01 μm (Factory set) Maximum response speed 200 m/min Functional safety – IEC 61508, EN/BS 62061 SIL 2
EN/BS/ISO 13849-1 Cat. 3 / PL d
EN/BS 61800-5-2Product Safety FCC Part15 Subpart B Class A
ICES-003 Class A Digital Device
EN/BS 61000-6-2, EN/BS 61000-6-4Product Environment EN/BS 63000 Operating temperature range 0 to +50°C Storage temperature range -20 to +55°C Vibration resistance 150 m/s2 (50 Hz to 3,000 Hz) Impact resistance 350 m/s2 (11 ms) Protective design grade IP54 (Air purge not included), IP65 (Air purge included) Power supply voltage range DC+4.75 to +5.25 V DC+17 to +30.8 V Maximum power consumption 1.3W or less (4.75 V or 5.25 V) 1.75W or less (17V)
1.9W or less (30.8 V)Consumption current 250 mA (5 V) (when the controller is connected) 75 mA (24 V)
(when the controller is connected)Mass Approx. 0.39 kg+ 1.53 kg/m or less Compatible cables
(types without relay
connectors)
Maximum cable lengthCH23A-***NVF
13 mCH23-***NVM
13 mCH23-***NVG
11 mCH22-***NSMY
30 mCompatible cables
(types with relay connectors)
Maximum cable lengthCH23A-***NVK + CH23A-***NPFA
30 mCH23-***NVK + CH23-***NPMA
30 mCH23-***NVK + CH23-***NPGA
30 mCH22-***NSMF + CH22-*** NSFY
30 m
