日本MIKIPULLEY三木普利聯軸器SFC-050DA2-20B-19B
發布時間：2024-08-13
日本MIKIPULLEY三木普利聯軸器SFC-050DA2-20B-19B

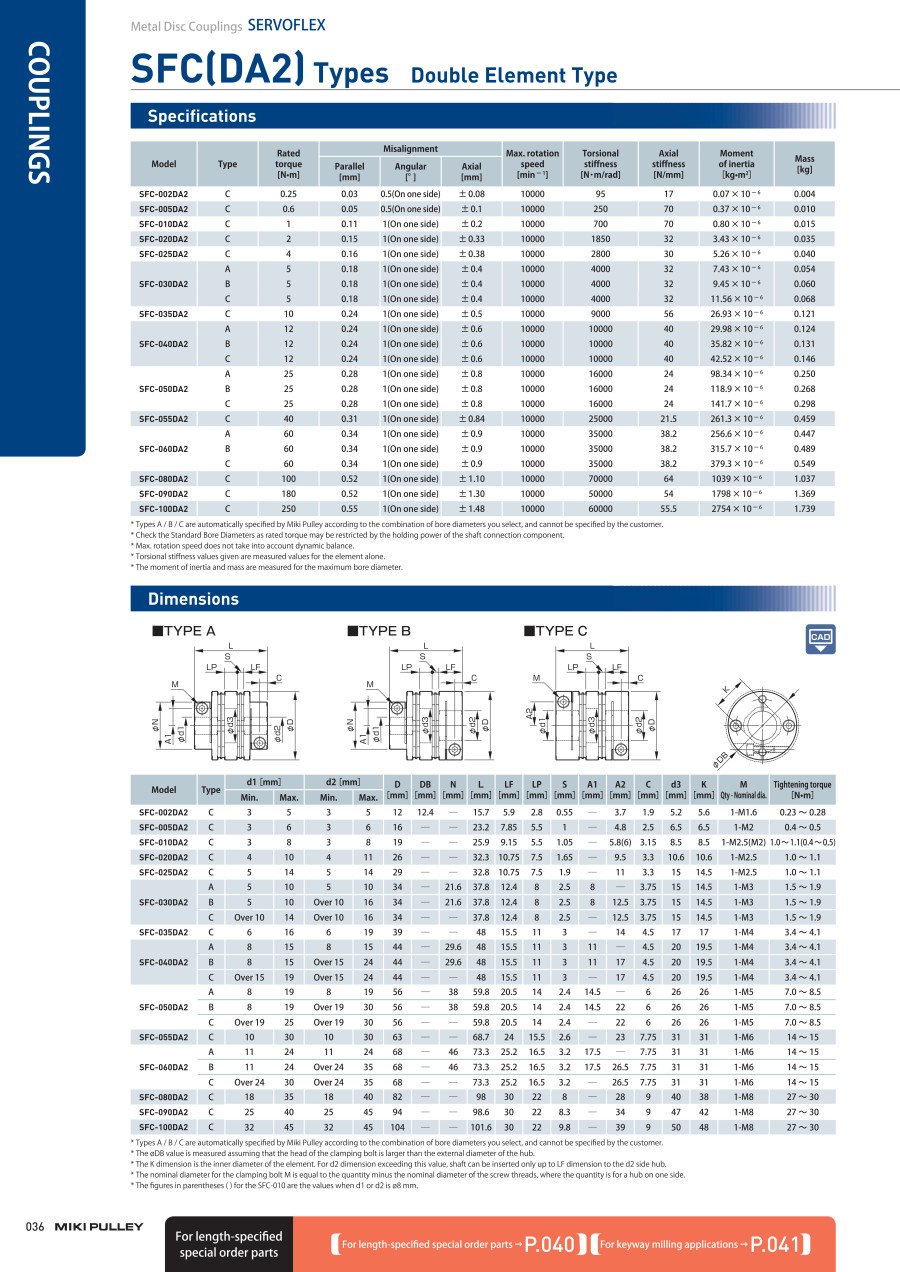

Servo Flex SFC (SFC-050DA2-19B-20B)
Part Number: SFC-050DA2-19B-20B
Uses lightweight, high-strength aluminum alloy for clamp hub. Extremely high torsional rigidity supporting high responsiveness.
| Type | Type of Flat Springs | Allowable Misalignment | Angular Misalignment / Eccentricity / Axial Misalignment |
|---|---|---|---|
| Application | Servo Motor / Stepping Motor / Encoder | Allowable Torque Range(N?m) | 20.01 to 50.00 |
| Hole diameter d1(mm) | 19 | Hole diameter d2(mm) | 20 |
| O.D.(?) | 56 | Full Length(mm) | 59.8 |
| Maximum Rotational Speed Range(r/min) | 4001~10000 | Features | High torsional rigidity / High Torque / High accuracy / High durability / Backlash 0 / Low Inertia Moment / Small |
| Body Material | Aluminum | Category | Coupling body |
