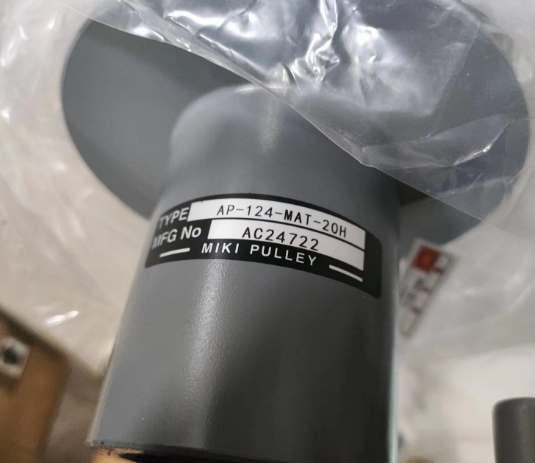

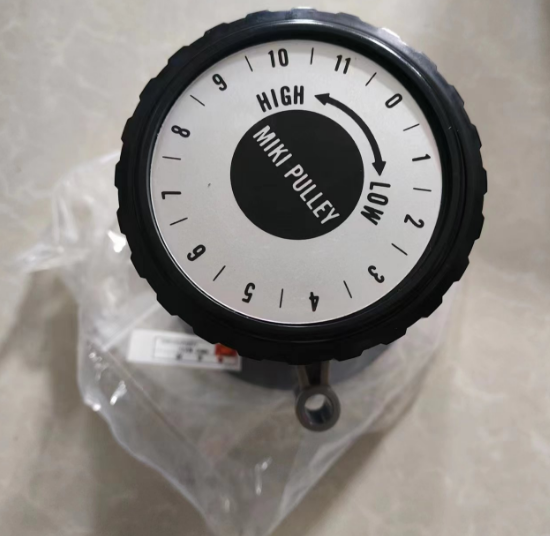

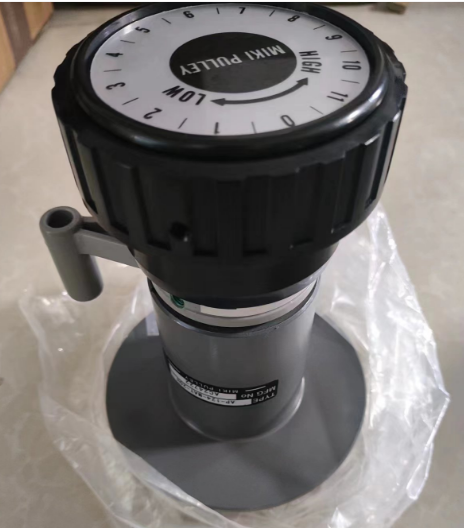

Model	Motor in use	Driven side speed changer	Belt	Speed change ratio	50Hz			60Hz
					Output rotation speed (r/min)	Output torque		Output rotation speed (r/min)	Output torque
					Output rotation speed (r/min)	［N?m］	｛kgf?m｝	Output rotation speed (r/min)	［N?m］	｛kgf?m｝
AP-86-MA	0.2 kW4P	P-86-MA	A	1:2.2	950～2150	1.6～0.7	｛0.16～0.07｝	1140～2590	1.4～0.6	｛0.14～0.06｝
AP-86-MA	0.2 kW4P	P-98-MA	A	1:2	820～1720	1.9～0.9	｛0.19～0.09｝	990～2060	1.6～0.8	｛0.16～0.08｝
AP-98-MA	0.4 kW4P	P-98-MA	A	1:2	1000～2050	3.1～1.5	｛0.31～0.15｝	1200～2460	2.6～1.3	｛0.26～0.13｝
AP-98-MA	0.4 kW4P	P-124 -MA	A	1:1.9	890～1710	3.5～1.8	｛0.35～0.18｝	1070～2060	2.9～1.5	｛0.29～0.15｝
AP-124-MA	0.75 kW4P	P-124-MA	B	1:2.2	950～2150	6.1～2.7	｛0.61～0.27｝	1140～2590	5.1～2.3	｛0.51～0.23｝
AP-124-MA	0.75 kW4P	P-164-MA	B	1:2	810～1660	7.2～3.5	｛0.72～0.35｝	970～2000	6.0～2.9	｛0.6～0.29｝
AP-164-MA	1.5 kW4P	P-164-MA	C	1:2.4	920～2230	12.7～5.2	｛1.27～0.52｝	1110～2680	10.5～4.4	｛1.05～0.44｝
AP-164-MA	1.5 kW4P	P-218-MA	C	1:2	680～1360	17.2～8.6	｛1.72～0.86｝	810～1640	14.4～7.1	｛1.44～0.71｝

[Belt Number and Distance between Shafts]

[Dimensions]

Unit ［mm］

Model	A	B	J	L	M	P₁	P₂	Q	R	T	D	W	U	Max. P.D.	Min. P.D.	Mass ［kg］
AP-86-MA	86	93	46	156	54	18	3.5	7	70	18	11	-	-	77	51	1.7
AP-98-MA	98	103	50	166	54	19	3.5	7	70	20	14	5	16	89	62	1.9
AP-124-MA	124	126	68	196	62	22	5	10	88	24	19	6	21.5	113	75	3.2
AP-164-MA	164	137	68	211	66	25	7	14.5	88	30	24	8	27	150	96	4.8

*Use 1800 r/min or less for the input rotation speed. (The 4-pole motor drive is appropriate)

[Aadapter]

Model	Bore depth[mm]	Supported shaft diameters (adapter bore)φD [mm]
Model	Bore depth[mm]	10	11	12	13	14	15	16	18	19	20	22	24	25
P-86-MA	30	◎	◎	◎	◎	◎	◎	◎
P-98-MA	40		◎	◎	◎	●	●	●	●	●
P-124-MA	50					●	●	●	●	●	●	●	●	●
P-164-MA	50					●	●	●	●	●	●	〇	〇	〇

* Bores marked with symbols above are available. ● , ◎ , and ○ indicate adapter type, and ▲ indicate straight type.

* Adapters indicated as ◎ do not have a keyway. Before using with a shaft having a key, first remove the key.

* ○ indicates model that includes an L key, since adapter specifications prevent a parallel key from fitting. Use this L key when mounting.

* Bore diameters for the L key distinguish between the old JIS and new JIS codes. Specify when ordering.

[Placement]

Unit ［mm］

Combination	AP-86-MA P-86-MA	AP-86-MA P-98-MA	AP-98-MA P-98-MA	AP-98-MA P-124-MA	AP-124-MA P-124-MA	AP-124-MA P-164-MA	AP-164-MA P-164-MA	AP-164-MA P-218
H	25	24.5	25	31	34	39.5	44	42.5
C-placement X₁	0	1	0	3	0	3	0	1.5
Z-placement X₂	39.5	40.5	41.5	44.5	49	52	57	58.5
