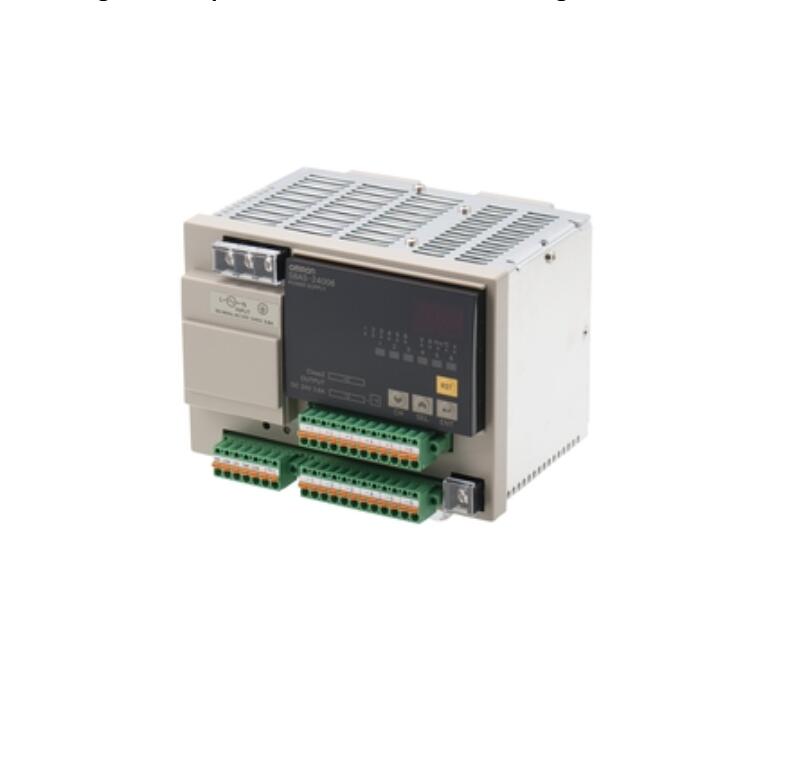

日本歐姆龍OMRON開關電源S8AS-48008
日本歐姆龍OMRON開關電源S8AS-48008
Switched Mode Power Supply (S8AS-48008)
Single Output, DIN Rail Mounting, S8AS Series
Part Number: S8AS-48008
Omron product. Integrating the circuit protector function improves safety, ensures space-saving, maintainability, improves design, production, maintenance, and efficiency of all processes
[Features]
· Provides safety and ease of maintenance.
· Form of the new power supply.
· The digital circuit protector function in one package.
· 240/480W type power supply.
· The breaking current value can be easily for each branch circuit in 0.1 A increments.
· Startup / shutdown sequence control is installed.
· Display alarm functionality for monitoring various types of items (output voltage, output current, replacement time notification, temperature).
· ULClass2 output compatible.
· DIN rail mounting.
Configured Specifications
Download
| Configuration | DIN Rail Direct Mounting | Capacity(W) | 480 |
|---|---|---|---|
| Single/Multi | Single | Input Voltage | AC Only |
| Output Voltage (Single Only) | 24 VDC | Output Rating Current (Single Only)(A) | 3.8 |
| Input Output Terminal Shape | Screw | Accessory Function | Numerical Display / Alarm Output |
| Safety standards | UL / CUL | Height(mm) | 119.5 |
| Width(mm) | 230 | Depth(mm) | 131.8 |
| RoHS | - |
