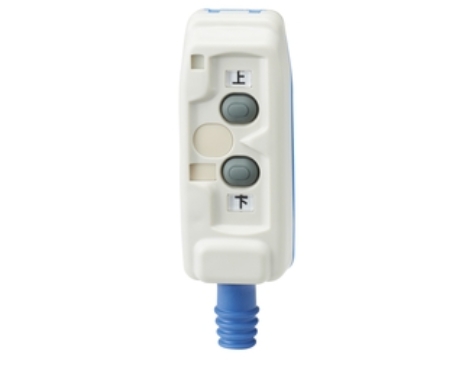

日本kasuga春日電機控制開關VP1033AML/VPHL03
Rated insulation voltage (V)
AC/DC500
Rated Current (A)
5
Connection Terminal
M3.5 screw
Ambient Temperature (°C)
-15 to 40
Relative humidity (%)
45 to 85
Operating Voltage (V)
DC24/AC220
Rated current used AC 15 inductive load (AC 220 V) (A)
2
Rated use current DC 13 inductive load (24 VDC) (A)
2
Representative Standard
PSE
Protective Structure
IP65
Dimension vertical (mm)
154.6
Dimension width (mm)
49
Dimension depth (mm)
33.8
Configured Specifications
Rated insulation voltage(V)
AC/DC500
Rated Current(A)
5
Connection Terminal
M3.5 screw
Ambient Temperature(°C)
-15 to 40
Relative humidity(%)
45 to 85
Features
Includes magnet/includes lamp
Number of buttons(piece)
3
Lettering plate
UP/CLOSED, CLOSED/OPEN, DOWN/OPEN
Operating Voltage(V)
DC24/AC220
Contact Configuration
1a×3
Rated current used AC 15 inductive load (AC 220 V)(A)
2
Rated use current DC 13 inductive load (24 VDC)(A)
2
Compatible cable diameter range(φ)
7.5 to 10.5
Lamp voltage(V)
DC24
Representative Standard
PSE
Protective Structure
IP65
Dimension vertical(mm)
154.6
Dimension width(mm)
49
Dimension depth(mm)
33.8
RoHS
