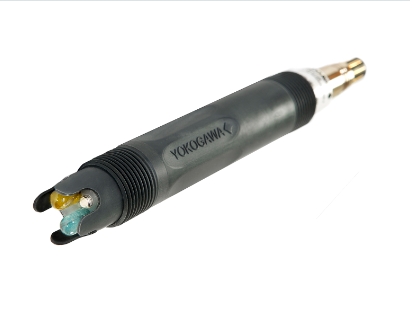

日本YOKOGAWA橫河PH電極FU20-10-T1-FSM/K1523DD
The FU20 and FU24 all-in-one sensors show how Yokogawa applies the motto "Simple is best" to sensor technology. These sensors feature four separate elements (pH, reference, temperature, ORP) allowing for simultaneous measurement of pH and ORP is possible with one sensor in a rugged Ryton or PVDF (FU20) and Ryton (FU24). The integral or variopin cable comes number-coded cable along with the integral NPT threads on the sensor makes installation convenient. The Quick Release Adapters for the FU20 allow easy removal of the sensor for cleaning and calibration.
Available as analog and digital SMART sensors (SENCOM) Solid Platinum ORP/LE electrode for accurate simultaneous pH and ORP measurements. Integral Pt1000 element for accurate temperature measurements and enhanced pH accuracy Double junction and long diffusional path for reference pollution/poisoning resistance Saturated Ag/AgCl reference system with double junction combined with polymerized saturated KCl and ion-trap prolong the life of the reference probe even in chemically unfavorable environments. Extended life time by large volume of polymerized electrolyte and porous PTFE diaphragm Cation Differential reference system available in the FU20 for elongated life Variopin connector or integrated cable options Simple maintenance by comprehensive design Versatile Direct in-line, immersion, off-line installation (flow fitting) and retractable Hot-tap (available with use of the FU20 only) Quick-Release adapter available for the FU20 Calibration certificate delivered with each sensor Patented automatic pressure compensation in the FU24 Available in two versions, a robust dome shape model for applications with a limited amount of solids, and a flat surface model for applications in which solids are a considerable component
The FU20 combination sensor shows how Yokogawa applies the motto "Simply the best" to sensor technology. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable PPS40GF (RytonTM) or PVDF body. Installation is simple with the integrated industrial 3/4" tapered thread. The large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning therefore extending the lifetime. The system is targeted at those applications where simplicity will result in accurate and reliable pH- or redox measurements. This means that in 90% of the know applications this sensor will be an excellent choice.
The FU24 is an all-on-one pH and ORP sensor made with a chemical resistant PPS 40GF body for harsh pH applications. It is particularly useful in applications with fluctuating pressure and/or temperature. These processes shorten sensor life because the process fluids move in and out of the sensor under influence of frequent pressure and/or temperature fluctuations. This results in fast desalting and dilution of the reference electrolyte which in turn changes the reference voltage causing a drifting pH measurement. By integrating the successful Yokogawa patented Bellow design concept within the FU24 electrode, a strong pressure compensation mechanism is created. The built-in bellow ensures immediate interior pressure equalization to the outside pressure, making the sensor virtually insensitive to external pressure variations. A slight overpressure caused by the bellow tension, prevents fluid ingress and maintains a positive ion flow out of the sensor.
