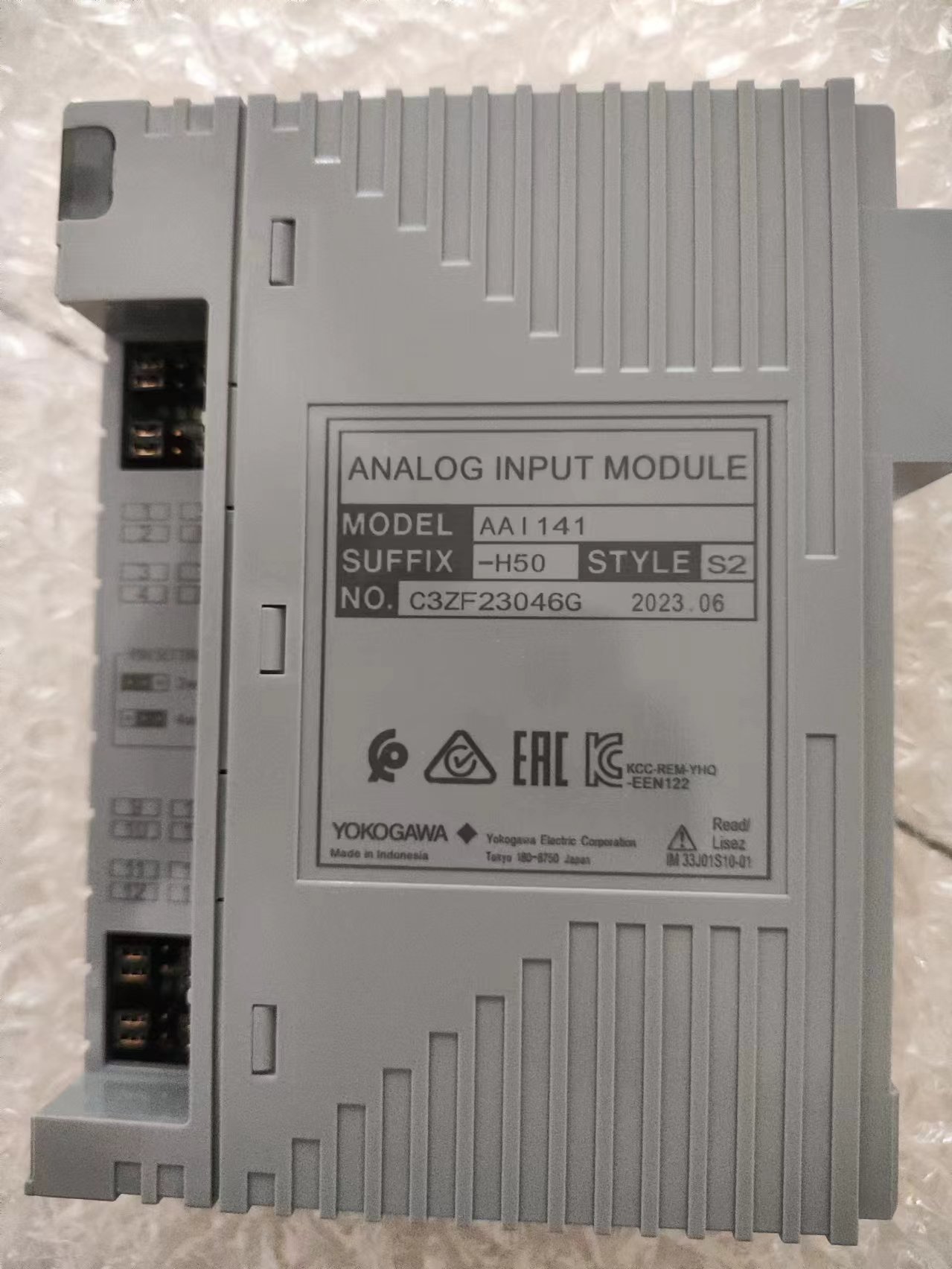

日本YOKOGAWA橫河模塊AAI141-H50/K4A00

日本YOKOGAWA橫河模塊AAI141-H50/K4A00

? GENERALThis GS describes the connection between the I/O Modules for FIO and field devices.? SIGNAL CONNECTIONS? Variation of Signal ConnectionsThe I/O Modules can be connected to field devices by terminal connection or with a terminal block via a KS cableinterface adapter. A customer-furnished MIL cable can also be used to connect to the I/O Module.The following explains the terminal blocks as well as the signal wiring that can be paired with the I/O Modules.

? Configuration of I/O Module ConnectionA pressure clamp terminal block is provided for the terminal connection with field devices. To expand terminals viaterminal boards, connect a KS cable adapter to an I/O Module. When using a customer-furnished MIL connectorcable, can directly connect to an I/O Module.A dedicated terminal block is provided for a dual-redundant configuration.Table Combinations of I/O Modules and Terminal Blocks (Part 1)Modelname Module nameForm of connectionPressure clampterminal Terminal board connectionSingle Dualredundant Adapter Cable Terminalboard– Analog I/O ModulesAAI141 Analog Input Module (4 to 20 mA, 16-Channel, Non-Isolated) ATA4S ATA4D ATK4A KS1 AEA4DAAV141 Analog Input Module (1 to 5 V, 16-Channel, Non-Isolated) ATA4S ATA4D ATK4AKS1 AEA4DKS2 MUB, TE16,MHCAAV142 Analog Input Module (-10 to 10 V, 16-Channel, Non-Isolated) ATA4S ATA4D ATK4A KS1 AEA4DAAB141 Analog Input Module (1 to 5 V/4 to 20 mA, 16-Channel, Non-Isolated) – – ATK4A KS2 MHCAAI841Analog I/O Module(4 to 20 mA Input, 4 to 20 mA Output, 8-Channel Input/8-ChannelOutput, Non-Isolated)ATA4S ATA4D ATK4A KS1 AEA4DAAB841Analog I/O Module(1 to 5 V Input, 4 to 20 mA Output, 8-Channel Input/8-ChannelOutput, Non-Isolated)ATA4S ATA4DATK4A KS1 AEA4DATM4A KS1 MCM, MHMATV4A KS2 MUB, TE16,MHCAAB842Analog I/O Module(1 to 5 V/4 to 20 mA Input, 4 to 20 mA Output, 8-Channel Input/8-Channel Output, Non-Isolated)– – ATM4A KS1 MHMATV4A KS2 MHCAAV542 Analog Output Module (-10 to 10 V, 16-Channel, Non-Isolated) ATA4S ATA4D ATK4AKS1 AEA4DKS2 MUB, TE16,MHCAAI143 Analog Input Module (4 to 20 mA, 16-Channel, Isolated) ATA4S ATA4D ATK4A KS1 AEA4DAAI543 Analog Output Module(4 to 20 mA, 16-Channel, Isolated) ATA4S ATA4D ATK4A KS1 AEA4DAAV144 Analog Input Module (-10 to 10 V, 16-Channel, Isolated) ATA4S ATA4D ATK4A KS1 AEA4DAAV544 Analog Output Module(-10 to 10 V, 16-Channel, Isolated) ATA4S ATA4D ATK4A KS1 AEA4DAAT141 Thermocouple/mV Input Module (*2) (Thermocouple: JIS R, J, K,E, T, B, S, N/mV: -100 to 150 mV, 16-Channel, Isolated) ATT4S ATT4D – – –AAR181 RTD Input Module (RTD: JIS Pt100 ?, 12-Channel, Isolated) ATR8S ATR8D – – –AAI135 Analog Input Module (4 to 20 mA, 8-Channel, Isolated Channels) ATI3S ATI3D ATK4A KS1 AEA4D(*3)ATI3A KS1 AEA3D(*4)AAI835 Analog I/O Module(4 to 20 mA, 4-Channel Input/4-Channel Output, Isolated Channels) ATI3S ATI3D ATK4A KS1 AEA4D(*3)ATB3A KS1 AEA3D(*4)AAT145Thermocouple/mV Input Module(Thermocouple: JIS R, J, K, E, T, B, S, N/mV: -100 to 150 mV, 16-Channel, Isolated Channels)– – – (*1) KS1AET4D,MTC, TETC(*5)AAR145 RTD/POT Input Module (RTD: JIS Pt100 ?/POT: 0 to 10 k?, 16-Channel, Isolated Channels) – – – (*1) KS8 MRT, TERTAKB335 AER4DAAP135 Pulse Input Module(8-Channel, Pulse Count, 0 to 10 kHz, Isolated Channels) ATI3S ATI3D ATK4A KS1 AEA4D(*3)ATI3A KS1 AEA3D(*4)AAP149 Pulse Input Module for compatible PM1(16-Channel, Pulse Count, 0 to 6 kHz, Non-Isolated) – – – (*1) KS2 MHCAAP849Pulse Input/Analog Output Module for compatible PAC(Pulse Count, 4 to 20 mA, 8-Channel Input/8-Channel Output,Non-Isolated)– – – (*1) KS1 MHM, MCMNote: One dual-redundant terminal block is used to connect two adjacent I/O Modules.Note: A cable connector cover (ACCC01) is provided for the connection via a MIL connector.*1: A cable can be connected directly to the I/O module without using an adapter.*2: When a MIL connector cable is connected, this can be used only as the mV Input Module.*3: For the combination of AAI135/AAI835/AAP135; ATK4A; AEA4D, either 2-Wire Transmitter 2-Wire Input (transmitter powersupply type) or 4-Wire Transmitter 2-Wire Input (without transmitter power supply) can be selected for each input channel.*4: For the combination of AAI135/AAP135; ATI3A; AEA3D and the combination of AAI835; ATB3A; AEA3D, all input channelsare 2-Wire Transmitter 2-Wire Input (transmitter power supply type).*5: When AAT145 module is connected to MTC terminal board or TETC terminal board, the module is 15-Channel.
