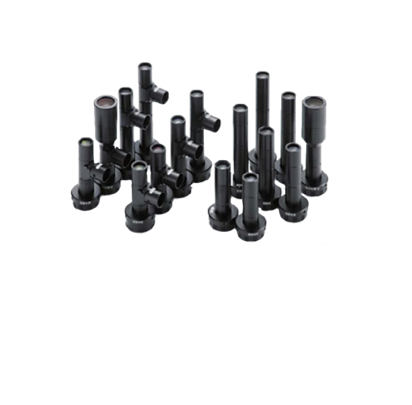

日本VST鏡頭VS-TC05-150CO
發布時間：2024-09-05
日本VST鏡頭VS-TC05-150CO
VS-TC05-150CO
Compact size and light weight
Wide range of WD from 40mm～340mm
Variety of magnifications 0.5x～10x : 1.5x / 3.0x / 5.0x also available
Built-in Co-axial models
| Model | VS-TC05-150CO | |
|---|---|---|
| Optical mag. | x0.5 ±5% | |
| 2/3" | - | |
| FOV (VxH) | 1/2" | 9.6x12.8mm |
| 1/3" | 7.2x9.6mm | |
| WD | 152.2mm ±5 | |
| O/I (Object & Imager distance) | 251.7mm | |
| Working F/# | 12.5 | |
| NA | 0.02 | |
| Resolution *at λ550nm | 16.8μ | |
| DOF at PCoC φ0.04mm | 4.0mm | |
| TV distortion (max.) | 0.001 | |
| Relative illuminance(Y=4) | 0.9 | |
| Wavelength | Visible (400nm - 700nm) | |
| Camera mount | C-mount | |
| Flange back | 17.526mm | |
| Sensor size (max.) | 1/2" | |
| Co-axial prism | Built-in | |
| Weight (approx.) | 90.5g | |
| Dimension | φ31(MAX) x L=82mm |
