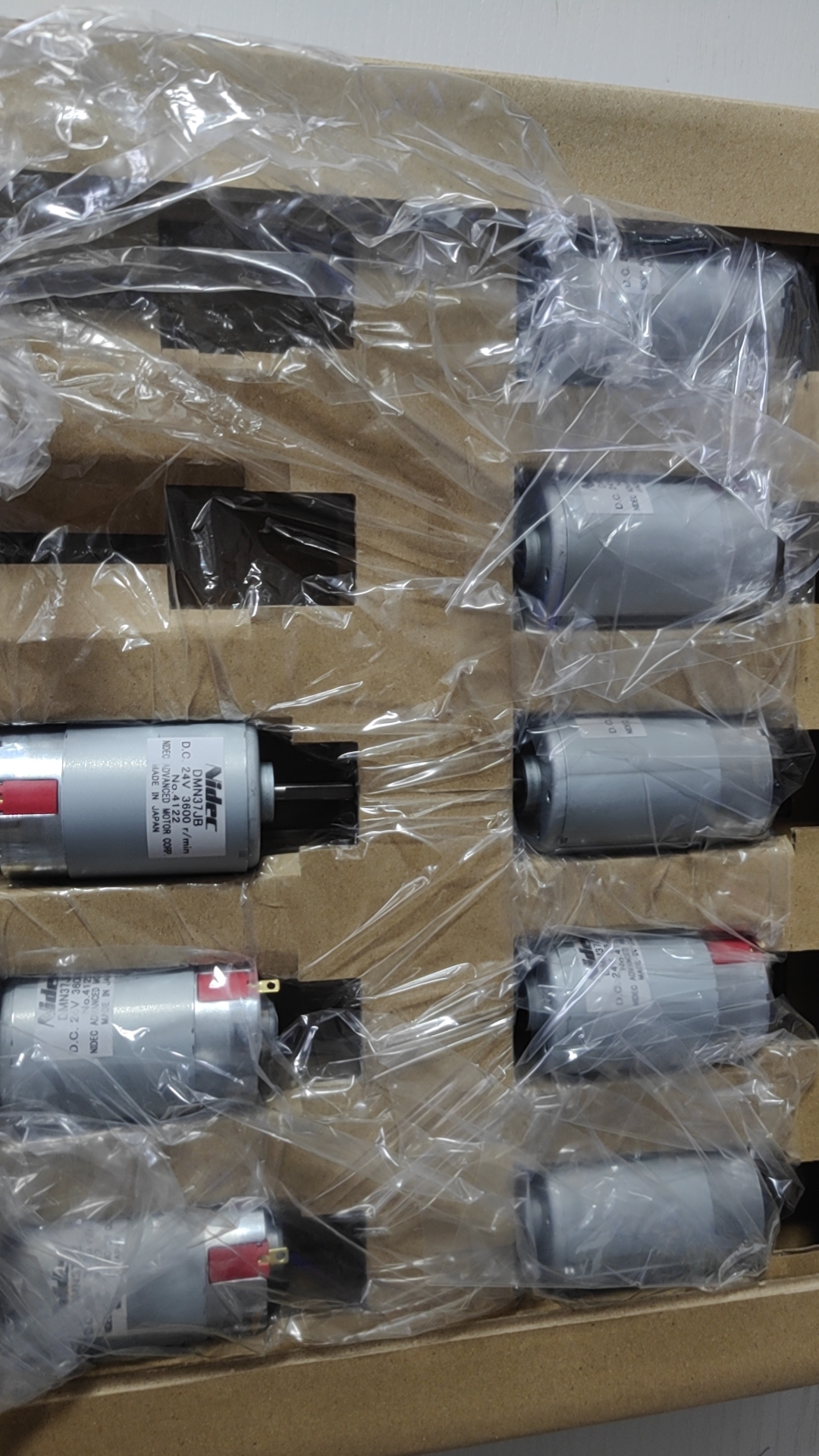

日本電產NIDEC微型電機馬達DME34B6HPB
日本電產NIDEC微型電機馬達DME34B6HPB
 |
|
|---|
| Motor Only |
|
?Please click model name for more details.
| | Model name | Rated | No Load | Stall | CAD data | Output
W | Voltage
V | Torque | Current
A | Speed
r/min | Current
A | Speed
r/min | Torque | | mN?ｍ | oz?in | mN?ｍ | oz?in | 2D | 3D | | DME34SA | 1.3 | 12 | 3.9 | 0.56 | 0.2 | 3300 | 0.04 | 4300 | 17 | 2.36 | ●
| ●●● | | DME34SB | 1.3 | 24 | 3.9 | 0.56 | 0.1 | 3300 | 0.02 | 4300 | 17 | 2.36 | ●
| ●●● | | DME34BA | 4.5 | 12 | 11.8 | 1.67 | 0.65 | 3700 | 0.07 | 5000 | 45 | 6.39 | ●
| ●●● | | DME34BB | 4.5 | 24 | 11.8 | 1.67 | 0.31 | 3700 | 0.04 | 5000 | 45 | 6.39 | ●
| ●●● | | DME34KB | 7 | 24 | 14.7 | 2.08 | 0.41 | 4300 | 0.06 | 5100 | 92 | 13.03 | ●
| ●●● |
|
|---|
| ■Magnetic revolution sensor |
|---|
| | Model name | Rated | No Load | Stall | CAD data | Output
W | Voltage
V | Torque | Current
A | Speed
r/min | Current
A | Speed
r/min | Torque | | mN?ｍ | oz?in | mN?ｍ | oz?in | 2D | 3D | | DME34SMA | 1.3 | 12 | 3.9 | 0.56 | 0.2 | 3300 | 0.04 | 4300 | 17 | 2.36 | ●
| ●●● | | DME34SMB | 1.3 | 24 | 3.9 | 0.56 | 0.1 | 3300 | 0.02 | 4300 | 17 | 2.36 | ●
| ●●● | | DME34BMA | 4.5 | 12 | 11.8 | 1.67 | 0.65 | 3700 | 0.07 | 5000 | 45 | 6.39 | ●
| ●●● |
|
|---|
