日本Nireco尼利可糾偏執行器K62-150-20/A K62-200-20/A
發布時間：2024-08-23

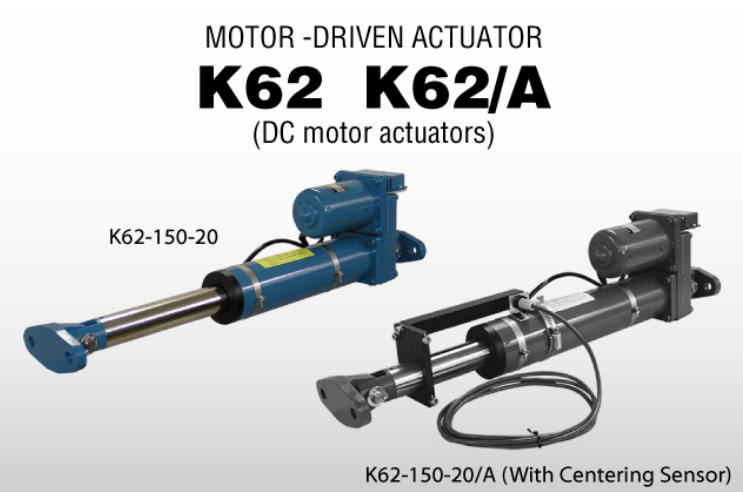

日本Nireco尼利可糾偏執行器K62-150-20/A K62-200-20/A
Overview
The K62 series is a strong actuator combined into a single structure with a planetary gear and ball screw.
In addition, the K62 actuator uses a high-output DC motor and has the highest thrust of the K series.
Its sister-product, the K62/A actuator, is equipped with an internal centering-sensor.

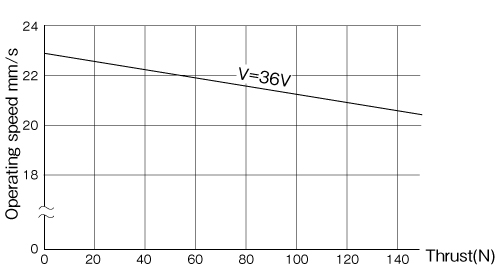

Load Characteristics
Specification
* NOTE : Speeds shown are when unloaded.Model Thrust (kN) Stroke (mm) Speed (mm/s) Mass (kg) Rated voltage (DCV) K62-150-20 1500 135 20 * 6 36(2A) K62-200-20 1500 185 20 * 6.5 36(2A) K62-150-20/A 1500 135 20 * 7 36(2A) K62-200-20/A 1500 185 20 * 8 36(2A)
