日本Chiyoda千代田接頭B8-02SC-O
發布時間：2024-08-19
日本Chiyoda千代田接頭B8-02SC-O
日本Chiyoda千代田接頭B8-02SC-O

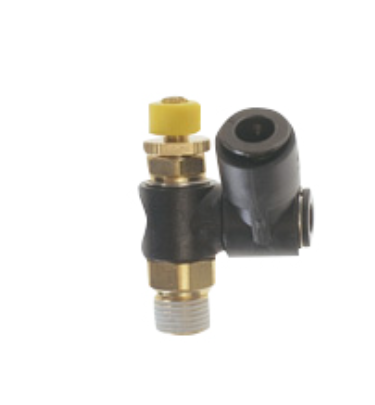

Flow Controls (B8R-02SC-O)
Universal Swivel Elbow Push to Connect, Sputter Resistant, Brass, Adjustable, B Series
Part Number: B8R-02SC-O
[Features]
●Special patented structure of a special locking ring, pull-out strength and durability of the highest level in a push-in joint
●Exterior all metal type
●Spatter-resistant 2-layer and 3-layer tube protection.
● Flexible elbow body and screw part on the upper part of the screw are rotatable * Not a rotary type.
Configured Specifications
Download
| Type | Speed Controller | Body Material | - |
|---|---|---|---|
| Control Direction | Meter-Out | Main Body Shape | Universal |
| Environment, Applications | Standard / Sputtering Resistance | Operating Temperature Range(°C) | -5～60 |
| Thread Portion Material | C3604: Brass | Operating Pressure Range(MPa) | 0.05～0.7 |
| Knob Type | With Flat-Blade Screwdriver Groove | Lock Nut Type | [Ring Nut] Chamfered with Two Parallel Planes |
| Joint Type | Male thread + One-Touch Couplings | Tube Outer Dia. D(φ) | 8 |
