日本Mitsubishi三菱伺服電機HG-KN43/HG-KN43K
發布時間：2024-08-17

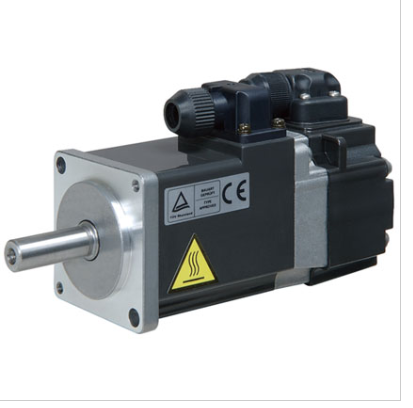

日本Mitsubishi三菱伺服電機HG-KN43/HG-KN43K
FA-Servo-Motion: Servo Motor
| Series | MELSERVO-JE |
|---|---|
| Type | HG-KN |
| Rated Capacity (kW) | 0,4 |
| Rated Torque (Nm) | 1,3 |
| Maximum Torque (Nm) | 3,8 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 5000 |
| Inertia (kg*cm2) | 0,375 |
| Brake | NO |
| Shaft Type | KEYWAY |
| Protection Class | IP65 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | 17-BIT |
| Encoder Resolution (p/rev) | 131072 |
| Inertia | LOW INERTIA |
Product Dimensions & Weight
| Width (mm) | 60 |
|---|---|
| Height (mm) | 60 |
| Depth (mm) | 128,3 |
| Weight (kg) | 1,4 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
