YUKEN油研液壓油泵A100-FR04HS-10

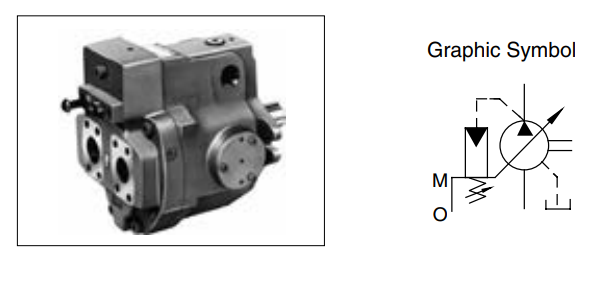

SpecificationsGraphic Symbol3.1.2.3.Applicable only for "A70/90/145"The table above shows specifications for using petroleum based oils.Pumps (customized design) for special fluids are also available. Theiroperating pressure and maximum shaft speed however differ from thevalues in the table above depending on the fluid type.Range of operating temperature and viscosities may differ from thoseof petroleum based oils due to their characteristics.The figures in brackets are for A22 type.As the specific gravities of water-glycol fluids and phosphate ester type fluids are higher than one, an overhead reservoir is required when pumpsare operated at 1500 r/min or more.For the design numbers of pumps for European Design and North American Design Standards, please contact us.Whenever setting pressure, make sure the full cut-off pressure neverexceeds the maximum intermittent pressure.Care should be taken in cases of used at a higher pressure than the ratedpressure, because operating terms may be restricted. For example, ifused as per maximum illustrated operating conditions, intermittent timeat maximum flow is restricted to under 1/5 of one cycle time and undersix seconds simultaneously. Conditions may vary according to the actualworking pressure and delivery (inclination angle of the swash plate).Consult factory or Yuken sales representative for further information.
A10-FR01B-12*
A10-FR01C/H-12*
A70-*R01*S-60*
A90-*R01*S-60
A145-*R01*S-60*
A16-*-R-01-*-*-K-32*
A22-*-R-01-*-*-K-32*
A37-*-R-01-*-*-K-32*
A56-*-R-01-*-*-K-32*
