日本荏原ebara水泵EVMS10 2F5/0.75

日本荏原ebara水泵EVMS10 12F5/5.5
日本荏原ebara水泵EVMS10 2F5/0.75
日本荏原ebara水泵EVMS10 3F5/1.5
日本荏原ebara水泵EVMS10 5F5/2.2
日本荏原ebara水泵EVMS10 4F5/2.2
日本荏原ebara水泵EVMS10 6F5/2.2
日本荏原ebara水泵EVMS10 7F5/3
日本荏原ebara水泵EVMS10 8F5/3
日本荏原ebara水泵EVMS10 9F5/4
日本荏原ebara水泵EVMS10 10F5/4
日本荏原ebara水泵EVMS10 11F5/4
日本荏原ebara水泵EVMS10 12F5/5.5
日本荏原ebara水泵EVMS10 14F5/5.5
日本荏原ebara水泵EVMS10 15F5/5.5
日本荏原ebara水泵EVMS10 16F5/7.5
日本荏原ebara水泵EVMS10 18F5/7.5
日本荏原ebara水泵EVMS10 19F5/7.5
日本荏原ebara水泵EVMS10 21F5/7.5
日本荏原ebara水泵EVMS10 22F5/11
日本荏原ebara水泵EVMS10 23F5/11

DETAILS

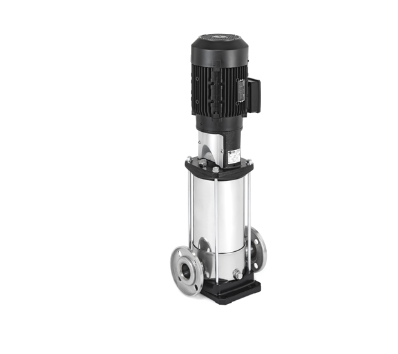

Ebara EVMS10 (F) vertical multistage pumps are the high flow (250l/min) models of the Ebara EVMS (F) series, designed for transferring clean and clouded water, where there is access to 400V power. The Ebara water pumps have a robust design with innovative hydraulic features and energy-saving IE3 electric motors to ensure high pump efficiency and provide the highest quality standards. These multistage centrifugal pumps are versatile pumping solutions used for various applications, including pressure boosting, boiler feeding, irrigation systems, cooling & air conditioning, water supply, water treatment systems and even fire fighting.

The beauty of these Ebara water pumps is that have an innovative 'Shurricane' designed impeller for greater efficiency and increased service life. The patented design of the Shurricane? impeller enables an 80% reduction in axial thrust making, preserving the life of the motor bearing and allowing any commercial motor to be fitted to the multistage pump models without any modifications. These Ebara vertical multistage centrifugal pumps also have a cartridge type shaft seal, allowing a quick and easy cartridge replacement without disassembling the motor mount (see video). To further enhance the pump design, the EVMS10 (F) multistage centrifugal pumps come with spacer coupling for easy maintenance and a smart plug solution, offering multiple advantages that improve the pump's durability and ensure long service life.

As standard, the Ebara EVMS (F) series of multistage water pumps are supplied with a round flange to connect to the pipework system. If you require a different pipe connection, contact us, and we will be able to provide more information about the Ebara EVMS models that match your requirement.

Specifications
?Maximum liquid temperature: 120°C
?WRAS Approved
?IP55 Protection
?Insulation class: F

Materials
?Pump body: AISI 304 Stainless steel
?Impeller: AISI 304 Stainless steel
?Mechanical seal: SiC/Carbon EPDM*

*standard version - Other seal materials available upon request.
