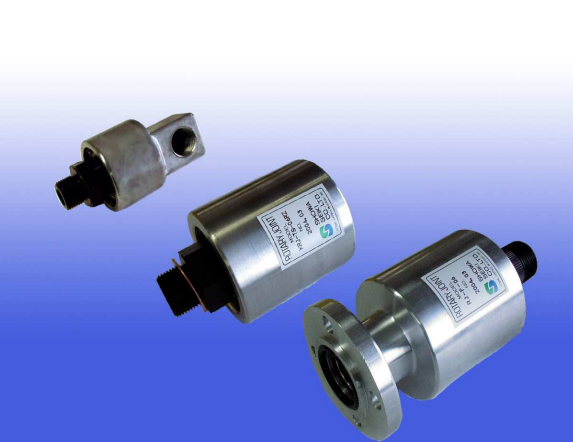

日本SHOWA-SEIK昭和旋轉接頭NRJ-TS-04x03R/NRJ-TS-06x04R
發布時間：2024-08-09
日本SHOWA-SEIK昭和旋轉接頭NRJ-TS-04x03R/NRJ-TS-06x04R
Aluminum alloy is used for a casing. Installation to a roll is easy as this product is small and lightweight.
As a grease-sealed ball bearings are used, greasing is not required.
Due to low torque, a measure for preventing casing rotation is not required.
※We are also able to produce products with linear flow passages.
※We are also able to produce products available for dry air.
| Fluid | Air / Gas / Water / Oil |
| Max. Pressure | 0.98MPa (142 psi) |
| Max. Temperature | 100 degrees C (212 degrees F) |
| Max. Rotation Speed | 6A to 25A 1500min-1 32A to 65A 1000min-1 |
※The lowest pressure when used under a pressure lower than atmospheric pressure is 1.3 ｋPa abs (10 Torr).
