日本Showagiken昭和技研接頭SKCL-25A-RH
發布時間：2024-08-09
日本Showagiken昭和技研接頭SKCL-25A-RH
日本Showagiken昭和技研接頭SKCL-25A-RH

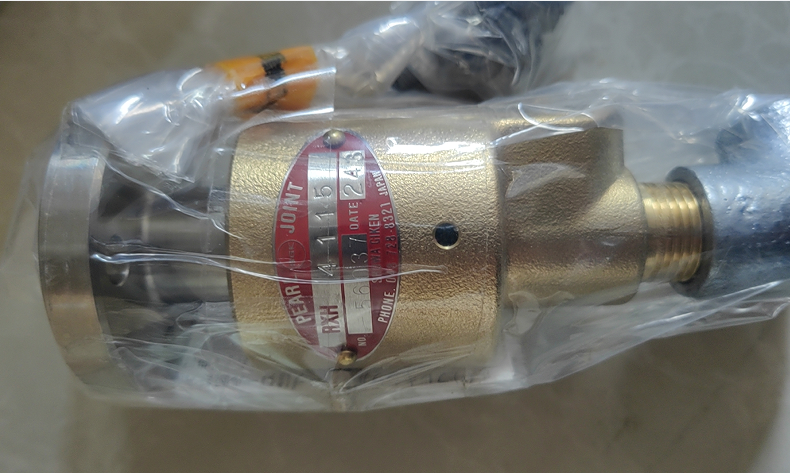

Pressure Rotary Joint Pearl Rotary Joint SKCL (Single Direction Screw-in Type)
Part Number: SKCL-10ARH
SKCL (Single, screwed type) is a rotary joint for supplying the medium to rotary equipment in a stable manner.
Configured Specifications
| Types | Simplex | Compatible Fluid | Water / Air / Gas / Oil |
|---|---|---|---|
| Maximum Operating Temperature(°C) | 100 | Maximum Operating Pressure(MPa) | 0.98 |
| Maximum Rotational Speed(rpm) | 1500 | Connection Type | Screw Mounting Type |
| Type of Connection Thread Supply Side (Single Unit, Swivel) | Rc | Type of Connection Thread Exhaust Side (Single Unit, Swivel) | G |
| Nominal Connection Thread Supply Side (Single Unit, Swivel) | [3/8B] 3/8 | Nominal Connection Thread Exhaust Side (Single Unit, Swivel) | [3/8B] 3/8 |
| Mounting Screw Direction | RH (Right Screw) |
