CHP-5000AT3-DSA-UD

Download manual in pdf

Features

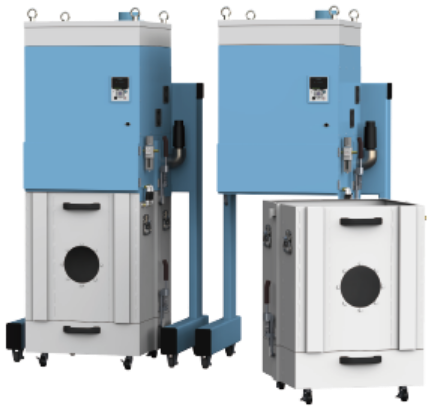

Incorporates new “UD” feature

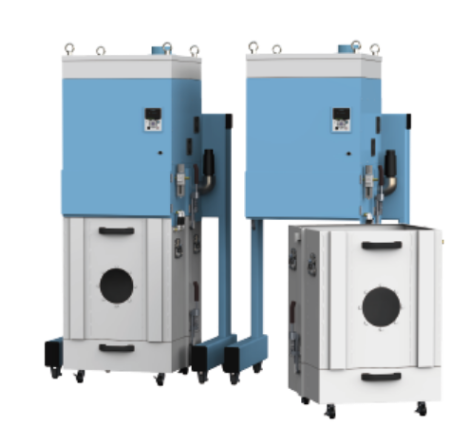

During maintenance of the primary filter chamber,
the upper section of the chamber (pulse chamber / blower control chamber) can be lifted or lowered manually. The primary filter chamber can be easily removed.

Dust tray

The up/down lift mechanism makes it easy to attach and remove the dust tray.Casters attached with the dust tray makes it convencient to remove without any effort.It is then easy to dispose of the dust and to replace the zeolite.

Large inspection window

You can check the zeolite scattering status, the effective-ness of the pulse jet in removing dust,
the suction status, and the condition of the filter through this window.

Control panel

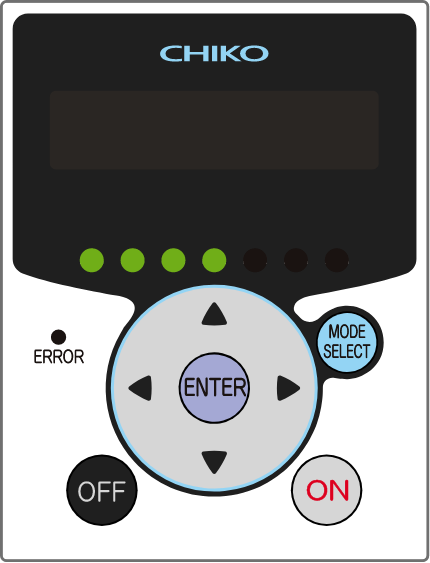

AT3 panel

See features page for more details.

Features

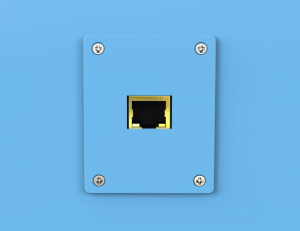

Ethernet / RS-485

Option feature

All functions that can be operated on the AT3 panel can be operated by a PC with Ethernet or RS-485 communication.

Remote control

Remote cable

(sold separately/model: Using MT-173-8 (3 m) enables remote operation of peripheral equipment.

Motor cable receiving port on main body

• 1.Operation input signal

• 2.Operation pressure signal (DC1-5V)

• 3.Filter clogging signal

• 4.Remote-control operation switching input signal

• 5.Operating signal

• 6.Abnormality signal

• 7.Change of operating level input signal (DC0-5V)

• 8.Gnd

Operation ON/OFF

Change capacity level (air volume)

Product structure and feautures

The zeolite is pre-coated by a proprietary scattering mechanism.

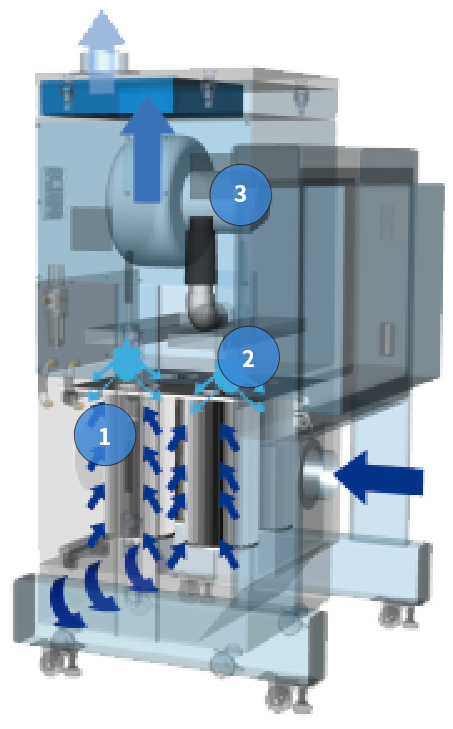

1. Primary filter

Long filter life is achieved even during the collection of fine dust and viscous fumes caused by laser processing.
Dust peeling properties improved with teflon filter.

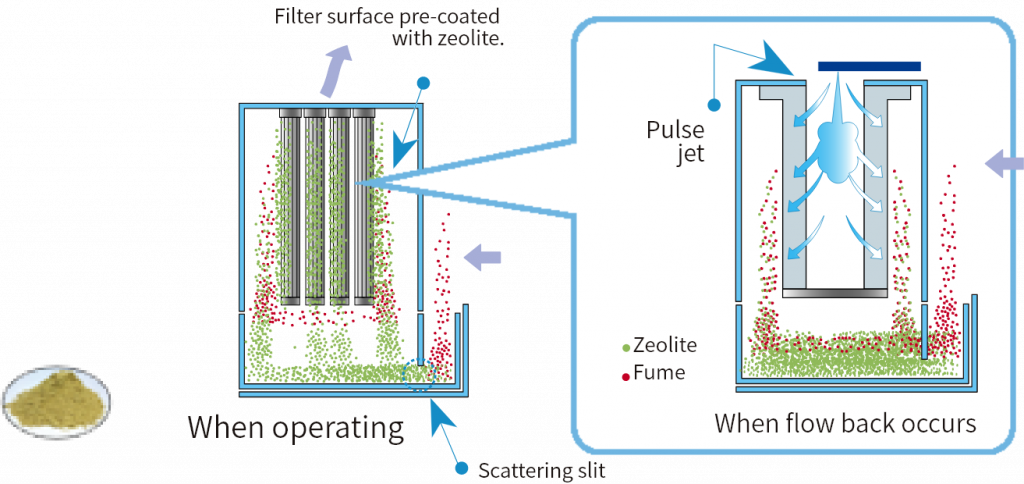

Airborne fumes and dust particles are sucked in by the suction blower, stirred up with zeolite from the scattering port then laminated on the filter as the zeolite is activated.

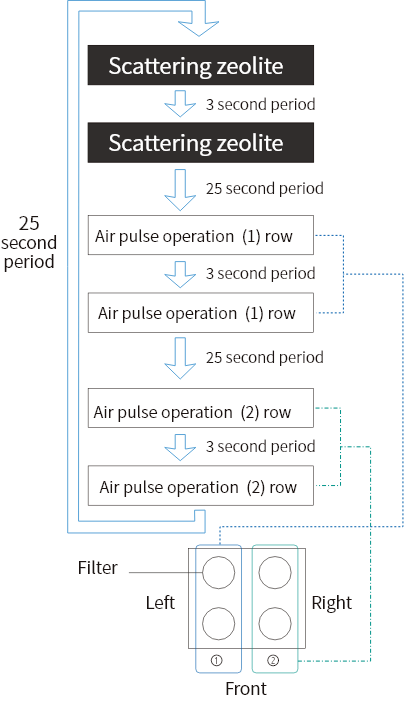

2. Filter cleaning function [Pulse type]

We have installed a proprietary
continuous pulse air (compressed air) cleaning function.

3. Blower

Equipped with a relief valve. Operates when a specified pressure level is exceeded to protect the blower from overheating.

Activated carbon

Deodorizing activated carbon can be installed as an option.

List of application

Extraction of fumes and dust during battery sealing process

Removal of dust and fumes from laser cutting lithium-ion battery electrodes

Removal of dust and fumes from laser cutting polarizing plate

Removal of dust from silicon isolator

Removal of dust when using laser cutting sheet for interior work

Dimensions

CHP-5000AT3-DSA-UD

Filter Type
