日本神港Shinko溫度傳感器RD-715-HA
發布時間：2024-08-07

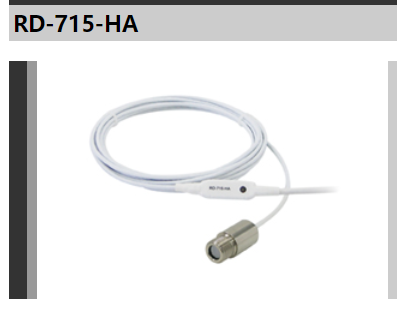

日本神港Shinko溫度傳感器RD-715-HA
| RD-715-HA |
 | |
| | -Non-contact temperature measurement-Quick response time: 14 ms (90 % response)-Compact and sturdy sensing head-Temperature range: 0 to 500 -Drip-proof/Dust-proof IP65-CE mark certified ?Model ?Dimensions ?Spec |
|
| Model |
| ModelField-of-ViewTemperature RangeOutputRD-715-HA15:10 to 500 Direct current 4 to 20 mA DC (2-wire type) |
|
| Dimensions |
| Sensing Head (Scale: mm) Electronics (Scale: mm) Cable End (Scale: mm) Accessory Sold Separately: Mounting bracket (TFB) (Scale: mm) Accessory Sold Separately: Air purge collar (ASAP) (Scale: mm) |
 |
|
| Spec |
| Rating | Temperature range0 to 500 Supply voltage2-wire type 5 to 30 V DC, 4 to 20 mAExternal shunt resistor: Max 1000 |
| General Structure | External dimensionsSensing head: 14 x 31 mm (diameter x length), M12 x 1Electronics: 35 x 12 mmMountingFixed, using a mounting bracket (The mounting bracket is sold separately.)MaterialSensing head: Stainless steelCable (Sensing head - Electronics): FEP, Cable diameter: 2.8 mmCable (Electronics - Cable end): PVC, Cable diameter: 4.3 mmDrip-proof/ Dust-proofIP65Cable length6 m (Sensing head - Electronics: 3 m, Electronics - Cable end: 3 m) |
| Performance | System accuracy (*1)1 % of temperature spanSpectral range8 to 14 mField of view15:1Repeatability(*1)0.75 % of temperature spanTemperature coefficient (*2)0.05 %/Temperature resolution0.1 Response time14 ms (90 % response)Warm-up time10 minutesEmissivityFixed at 0.9500.200 to 1.000 [When digital indicating controller (ACS-13A-x/A, sold separately) is used]TransmissivityFixed at 1.000(*1) Ambient temperature 23 5  (*2) Ambient temperature (sensing head) is lower than 18 , and higher than 28 . |
| Output | Analog outputDirect current 4 to 20 mA DCLoad impedance (loop impedance): 1000 or less |
| Other | Ambient temperatureSensing head: -20 to 120 Electronics: -20 to 80 Storage temperature-40 to 85 Ambient humidity10 to 95 %RH (Non-condensing)Vibration (sensing head)IEC 68-2-6: 3 G, 11-200 Hz, x,y,z directionalShock (sensing headIEC 68-2-27: 50 G, 11 ms, x,y,z directionalWeight152 gAccessories includedInstruction manual: 1 copyNut: 1 pieceAccessories sold separatelyMounting bracket (TFB) (Scale: mm)Air purge collar (ASAP)Digital indicating controller (ACS-13A-x/A)Power supply for the RD series (RDP-24) |
