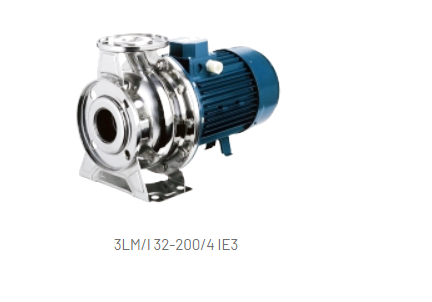

日本EBARA荏原泵3LM/I 32-200/4.0
Specifications | |
Brand | Ebara |
Flow l/min | 100-360 |
Flow m3/h | 6-22 |
Number of Impellers | 1 |
Motor | 3~ 400/690 V 50Hz |
Motor rpm | 2900 |
Power kW | 4.0 |
Poles | 2 |
Temp max °C | -10 – +110 |
Dimensions / Weights | |
Impeller diameter | ?200 |
Connection in | DN 50 |
Connection out | DN 32 |
Weight kg | 38.2 |
Weight lb | 84 3-3L SERIES Centrifugal pumps close coupled and standardized CENTRIFUGAL ELECTRIC PUMPS END SUCTION IN COMPLIANCE WITH EN 733 (FORMER DIN 24255) End suction centrifugal pumps built in stainless steel AISI 304 (3 Series) and AISI 316L (3L Series) APPLICATIONS ? Water supply to civil, agricultural and industrial plants ? Pressure boosting ? Fire-fighting, heating systems and air-conditioning ? Moving industrial liquids ? Irrigation ? Refrigeration towers ? Swimming pools ? Emptying ? Washing plants TECHNICAL DETAILS ? Can also work in vertical position ? Highly resistant contruction ? Hydroforming process EBARA patent PUMP TECHNICAL DATA ? Maximum working pressure: 10 bar ? Maximum temperature of the liquid: -10°C ÷ +90°C -10°C ÷ +110°C (L-H-HS-HW-HSW versions) -20°C ÷ +120°C (E-ES version) ? MEI
|
