DOP-301SB
Outline
This is a vacuum pump that evacuates by reciprocating the piston in the cylinder. Simple structure and easy handling.
Features and Cautions on use
Rocking piston type vacuum pump creates vacuum by reciprocal motion of cup packing inside the cylinder.
Specification
Pumping speed unit
L/min
Pressure unit
Pa
| Item | Unit | 50Hz | 60Hz |
|---|---|---|---|
| Actual Pumping Speed | L/min | 300 | 330 |
| Ultimate Pressure | Pa | 8.0×103 | |
| kPa | -93.3 #1 | ||
| Motor Output | W | 400 | |
| Weight | kg | 20 | |
| Inlet, Outlet port diameter | mm | O.D.φ16×I.D.φ12 (Rc 1/2) | |
| Ambient temperature | ℃ | 0～40 | |
| Overall dimensions | mm | 315(W) × 443(L) × 231(H) | |
| RoHS applied | ● | ||
#1: Gauge pressure
Power Supply/Voltage
| Voltage | Certificate | Remarks |
|---|---|---|
| Three phase, 200-230V | CE, TUV, cTUVus |
■TUV Certification: A high-quality product that complies with European standards as assessed by an international third party that conducts product safety testing and certification.
Outline Drawing

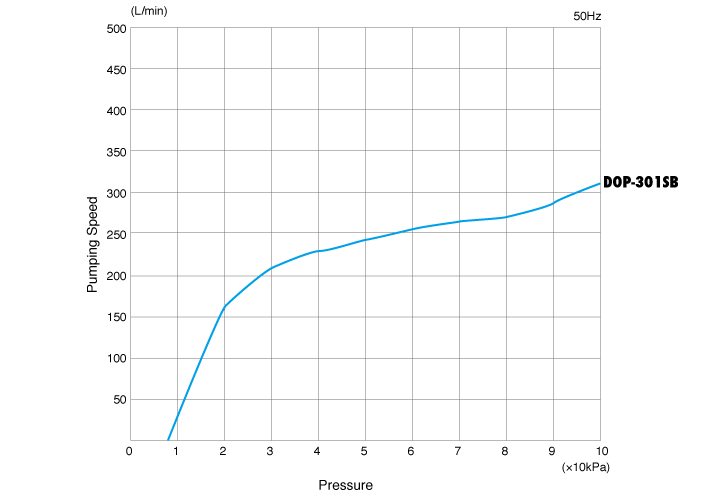

Pumping Speed Curves
Remarks
The pump is stopped when the lord is operated, and the pump can’t be operated just after that. In this case, please return the atmospheric pressure the inside of the pump.
The pump will not often operate normally if it is used with corrosive gases, organic solvents, liquids, or condensed gases (eg steam). The pump will not often operate normally if it is used with gases containing particles or dust etc.
Cup packing that is the sliding material of the pump will be worn out by operating, and microscopic particles result from wear of component. Moreover, wear is promoted because the sliding material is weak in moisture, and the pump life decreases if the vacuum gas is moisture. Please suck neither moisture nor condensed gas (steam etc.).
It is a pump only in the room. Please do not set it up in the place, that rain and water splash, and outdoors.
Applied optional part items
| No. | Category name | Series | Name |
|---|---|---|---|
| 1 | Maintenance Kit | Maintenance Kit Series | Maintenace Kit for DOP-300S/SA/301SA/SB/SVB |
| 2 | Anti-vibration Rubber | Anti-vibration Rubber | Anti-vibration rubber (KA-20) |
| 3 | Anti-vibration Rubber | Anti-vibration Rubber | Anti-vibration rubber (KA-25) |
