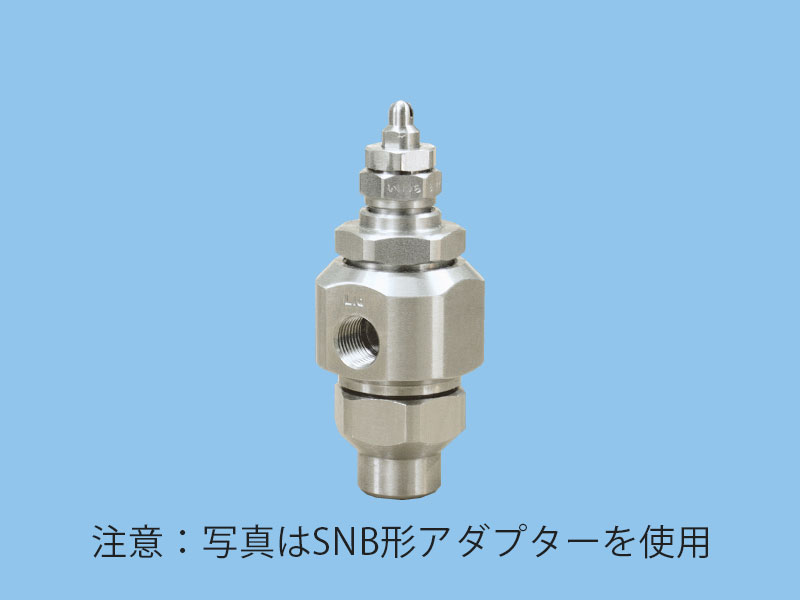

Low Flow Rate Fine Fog Nozzles/ Flat Spray BIMV series nozzles
| Thread standard | - | Pipe conn. size | - | Standard pressure | - |
|---|---|---|---|---|---|
| Spray angle | 45°, 80°, or 110° (*1) | Spray capacity | 1.0–107 ?/hr | Supply air type | Compressed air |
| Liquid feeding system | Liquid pressure | Mean droplet diameter | 20–100 μm | Air consumption | 7–245 ?/min, Normal |
| Air pressure | 0.2–0.4 MPa | Free passage diameter | 0.2–1.6 mm (*2) |
Features

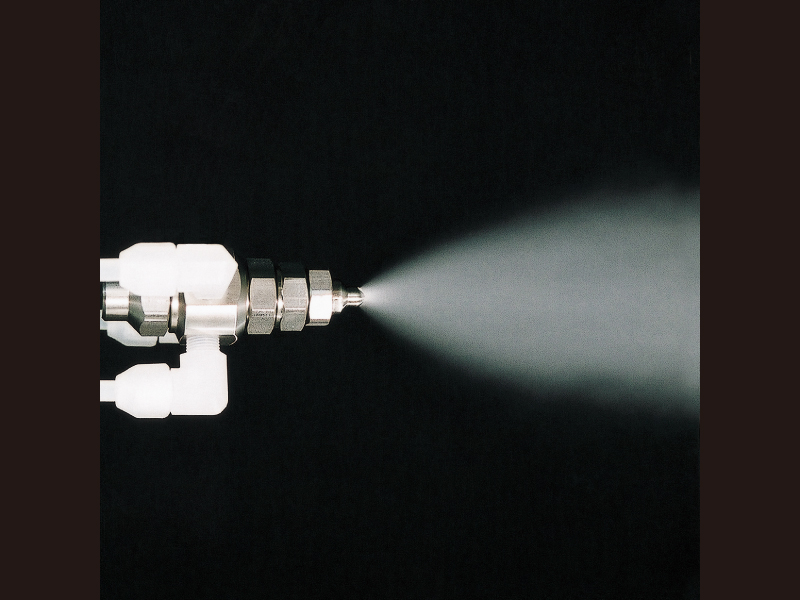

? Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 100 μm or less (*3).
? Features large turn-down ratio under liquid pressures of 0.1–0.3 MPa.

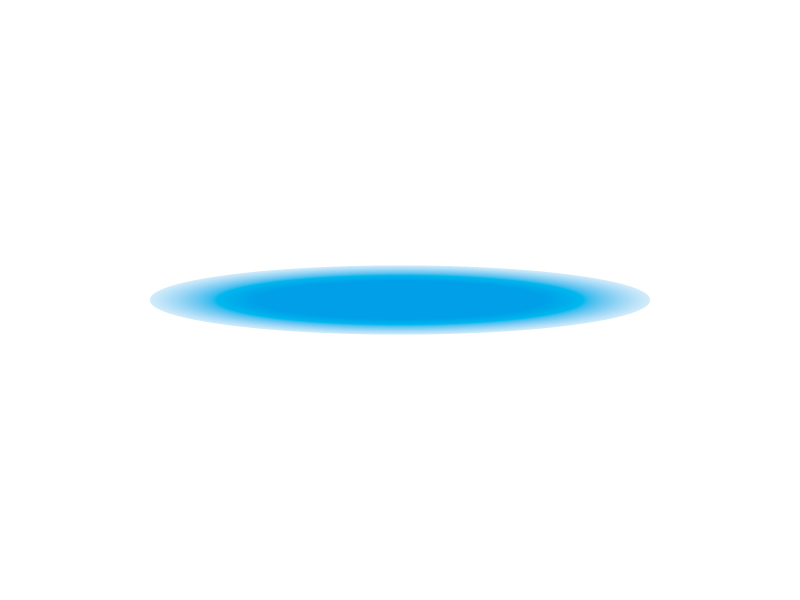

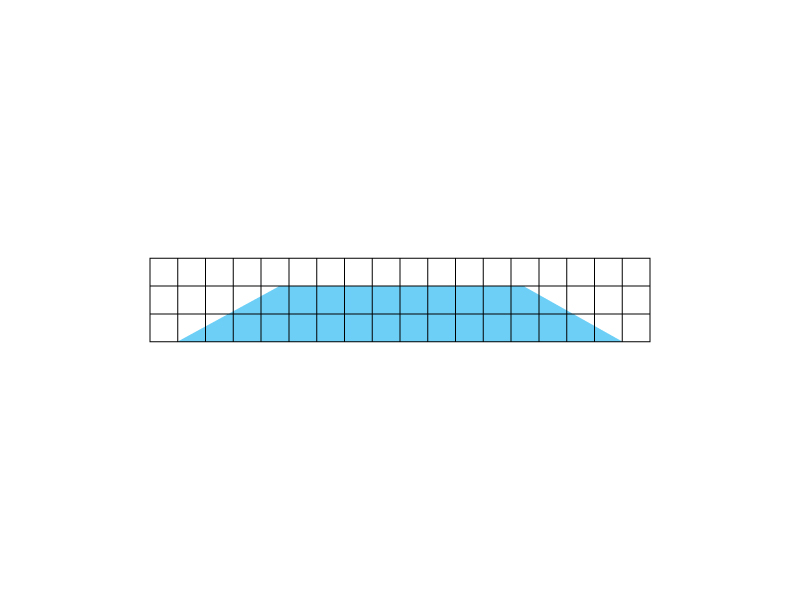

? Produces two different spray distributions: uniform spray distribution throughout spray pattern area (when spraying at a low air-water ratio), or a mountain-shaped distribution having gradually tapered edges (at a high air-water ratio).
? Spray angle of 110?, 80?, or 45?.
*1) Spray angle measured at compressed air pressure of 0.3 MPa and liquid pressure of 0.1 MPa.
*2) Free passage diameter of nozzle orifice.
*3) Measured by Laser Doppler Method.
Spraying: Mold release agent, lubricant, deodorant (trash pit, refuse collector, inlet conduit), oil, surface treatment agent, rust preventive, honey, insecticide, aqueous urea, etc. ? ElectronicsApplications
Cooling: Dies, gas, glass, steel plates, steel pieces, moldings, automobile bodies, plastic products, etc.
Moisture control: Paper, gas, ceramics, concrete, etc.
Cleaning: Printed circuit boards, glass tubes, etc.
Others: Dust suppression, catalyst denitration, etc.
[Steelmaking industry]
Raw material process: Dust suppression at the conveyor line, Flue gas denitration reducing agent
Steelmaking process: Cooling refractories at maintenance of ladle and tundish, Cooling electric furnace and electrode
Rolling mill process: Cooling coil
Surface finish process: Minimized spangle treatment at the continuous galvazing line, Cooling coating lineIndustries in which this nozzle is used
? Paper & pulp
? Printing
? Food
