日本山武接近開關FL7M-3J6HD-CN/ FL7M-3J6HD-CN03
發布時間：2024-07-01

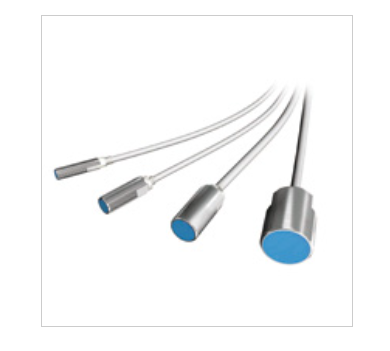

日本山武接近開關FL7M-3J6HD-CN/ FL7M-3J6HD-CN03
Configured Specifications
| Sensor Shape | Cylinder type (thread) | Detection distance L1 [classification](mm) | ~3 |
|---|---|---|---|
| Detection Object | Magnetic Metal / Non-magnetic Metal | Operating Environment | Standard / Oil Resistance Reinforcement / Cold Resistance |
| Shield | Shield | Detection Type | Front Surface Detection |
| Sensor Case Material | Brass (Nickel Plating) | Sensor Detection Surface Material | PBT Resin |
| Amplifier | Built-in Type | Detection Head Size, Dimension M | M12 |
| Detection Head Size, Dimension L2 (Range)(mm) | 30.1~40 | Detection Head Size, Dimension L2(mm) | 35.5 |
| Show More | |||
Product Description
A DC 2-wire type with excellent waterproof properties and a robust structure. Includes a indicator light with improved visibility.
[Features]
· A 2-wire DC type for reducing wiring costs.
· Includes a setting indicator that shows its stable detection area.
· Robust housing that can support being tightly fastened.
· An indicator light that can be seen from any angle.
· Low current consumption. (Achieves 0.55 mA)
· High sealing properties. (IP67G)
· High speed response. (Achieves 0.2 kHz)
*CAD data for this series is being revised. Data will be made available as soon as modifications are complete.
