日本小金井氣缸BDAS10X15-3A-ZC130A2
發(fā)布時間：2024-06-19

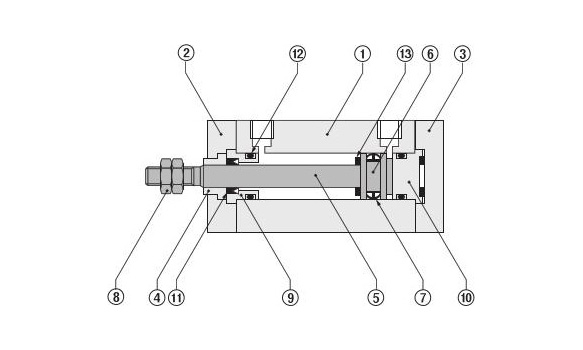

Internal Structure
| NO. | Name | Materials | |
|---|---|---|---|
| Standard specifications | Non-ion specification | ||
| (1) | Main Body | Aluminum (anodizing) | ← |
| (2) | Rod cover | PBT resin | Aluminum (Black anodizing) |
| (3) | Head cover | PBT resin | Aluminum (Black anodizing) |
| (4) | Rod push | Oil-impregnated copper alloy | Stainless steel |
| (5) | Piston rod | Stainless steel | ← |
| (6) | Piston | Brass | Aluminum |
| (7) | Piston packing | Synthetic rubber (NBR) | ← |
| (8) | Rod end nut | Hard copper (Electric nickel plating) | ← |
| (9) | Packing case | Brass | Stainless steel |
| (10) | Cap | Polyacetal | ← |
| (11) | Rod packing | Synthetic rubber (NBR) | ← |
| (12) | O-ring | Synthetic rubber (NBR) | ← |
| (13) | Bumper | Synthetic rubber (NBR) | ← |
| (14) | Spring | Hard copper (Zinc plating) | ← |
| (15) | Spring holder | Brass | Aluminum |
| (16) | Color | Brass | Aluminum |
| (17) | Filter | Foam metal | ← |
| (18) | Support | Brass | Aluminum |
| (19) | Magnet | ?6: Sintered alloy magnet ?10·?16: Resin magnet | ← |
Product features details
Side mount that supports small movements with multi-function and can be directly mounted
In addition to the side mounts that can be mounted directly, 3 types of mounting brackets accurately support various mounting situations.
Moreover, regardless of the mounting type, the design allows the parallelism and perpendicularity between the axis of the piston rod and the mounting surface to be obtained with high accuracy.
The combination of the square & compact body and the mounting bracket further expands the degree of freedom in device design.
Not only the expansion of the series, but also the reliability and practicality.
