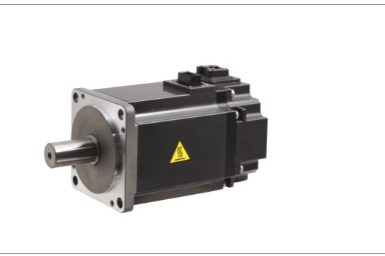

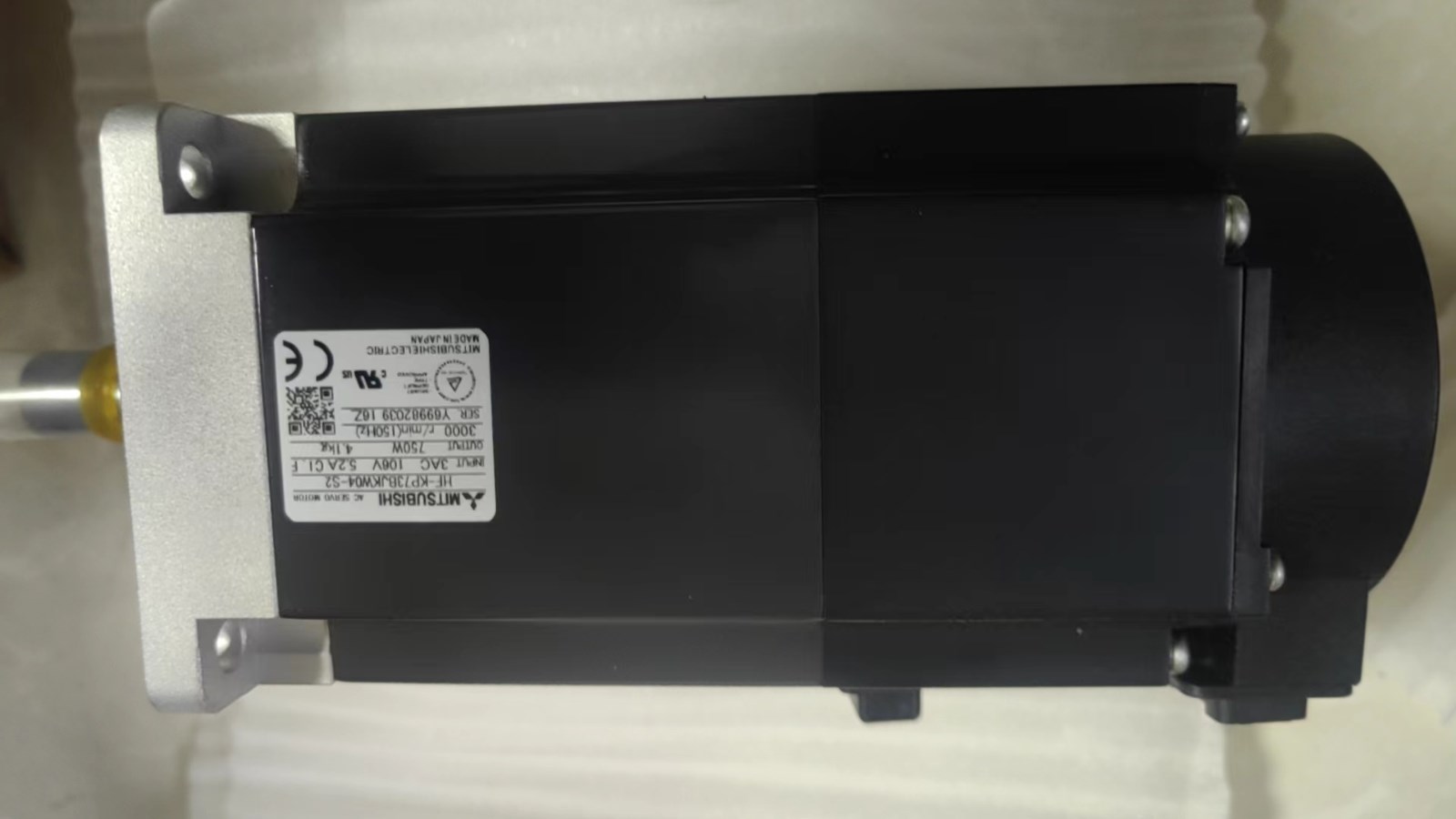

日本三菱伺服電機HG-KR43BJ "A160/B40/B80/E100/D10
發布時間：2024-06-17
日本三菱伺服電機HG-KR43BJ "A160/B40/B80/E100/D10
日本三菱伺服電機HG-KR43BJ "A160/B40/B80/E100/D10
FA-Servo-Motion: Servo Motor
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-KR |
| Rated Capacity (kW) | 0,4 |
| Rated Torque (Nm) | 1,3 |
| Maximum Torque (Nm) | 4,5 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 6000 |
| Inertia (kg*cm2) | 0,393 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP65 |
| Power Supply (V) | 200 |
| Current Type | AC |
| Encoder Type | 22-BIT |
| Encoder Resolution (p/rev) | 4194304 |
| Inertia | LOW INERTIA |
Product Dimensions & Weight
| Width (mm) | 60 |
|---|---|
| Height (mm) | 77,1 |
| Depth (mm) | 135,1 |
| Weight (kg) | 1,8 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
