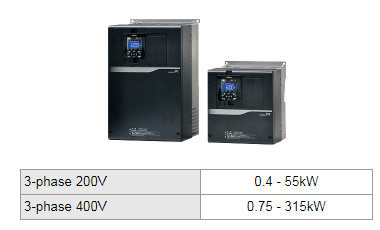

日本日立hitachi變頻器SH1-00470-HFCF 18.5KW
發(fā)布時間：2024-05-27
200V class specifications
| Model name(P1-???-L) | 00044 | 00080 | 00104 | 00156 | 00228 | 00330 | 00460 | 00600 | 00800 | 00930 | 01240 | 01530 | 01850 | 02290 | 02950 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Applicable motor capacity (4 poles) (kW)*1 | VLD | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | ||
| LD | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | |||
| ND | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | |||
| Output | Rated output current (A)*2 | VLD | 4.4 | 8.0 | 10.4 | 15.6 | 22.8 | 33.0 | 46.0 | 60.0 | 80.0 | 93.0 | 124 | 153 | 185 | 229 | 295 | |
| LD | 3.7 | 6.3 | 9.4 | 12.0 | 19.6 | 30.0 | 40.0 | 56.0 | 73.0 | 85.0 | 113 | 140 | 169 | 210 | 270 | |||
| ND | 3.2 | 5.0 | 8.0 | 11.0 | 17.5 | 25.0 | 32.0 | 46.0 | 64.0 | 76.0 | 95.0 | 122 | 146 | 182 | 220 | |||
| Overload current rating | VLD | 110% 60sec / 120% 3sec | ||||||||||||||||
| LD | 120% 60sec / 150% 3sec | |||||||||||||||||
| ND | 150% 60sec / 200% 3sec | |||||||||||||||||
| Rated output voltage | Three-phase (3 wire) 200 to 240 V (Corresponding to the incoming voltage) | |||||||||||||||||
| Rated capacity (kVA) | 200V | VLD | 1.5 | 2.7 | 3.6 | 5.4 | 7.8 | 11.4 | 15.9 | 20.7 | 27.7 | 32.2 | 42.9 | 53.0 | 64.0 | 79.3 | 102 | |
| LD | 1.2 | 2.1 | 3.2 | 4.1 | 6.7 | 10.3 | 13.8 | 19.3 | 25.2 | 29.4 | 39.1 | 48.4 | 58.5 | 72.7 | 93.5 | |||
| ND | 1.1 | 1.7 | 2.7 | 3.8 | 6.0 | 8.6 | 11.0 | 15.9 | 22.1 | 26.3 | 32.9 | 42.2 | 50.5 | 63.0 | 76.2 | |||
| 240V | VLD | 1.8 | 3.3 | 4.3 | 6.4 | 9.4 | 13.7 | 19.1 | 24.9 | 33.2 | 38.6 | 51.5 | 63.6 | 76.9 | 95.1 | 123 | ||
| LD | 1.5 | 2.6 | 3.9 | 4.9 | 8.1 | 12.4 | 16.6 | 23.2 | 30.3 | 35.3 | 46.9 | 58.1 | 70.2 | 87.2 | 112 | |||
| ND | 1.3 | 2.0 | 3.3 | 4.5 | 7.2 | 10.3 | 13.3 | 19.1 | 26.6 | 31.5 | 39.4 | 50.7 | 60.6 | 75.6 | 91.4 | |||
| Input | Rated input AC voltage*3 | Main circuit power supply: Three-phase (3 wire) 200 to 240 V 50Hz/60Hz Control power supply : Single-phase supply 200 to 240 V 50Hz/60Hz | ||||||||||||||||
| Permissible AC voltage/ Frequency fluctuation*3 | AC voltage: 170 to 264V 50/60Hz, Frequency: ±5% | |||||||||||||||||
| Power supply capacity (kVA)*4 | VLD | 2.0 | 3.7 | 4.8 | 7.1 | 10.4 | 15.0 | 20.9 | 27.3 | 36.3 | 42.2 | 56.3 | 69.4 | 84.0 | 104 | 134 | ||
| LD | 1.7 | 2.9 | 4.3 | 5.5 | 8.9 | 13.7 | 18.2 | 25.5 | 33.2 | 38.6 | 51.3 | 63.6 | 76.7 | 95.3 | 123 | |||
| ND | 1.5 | 2.3 | 3.7 | 5.0 | 8.0 | 11.4 | 14.6 | 20.9 | 29.1 | 34.5 | 43.1 | 55.4 | 66.3 | 82.6 | 99.8 | |||
| Carrier frequency variation*5 | VLD | 0.5 to 10.0kHz | ||||||||||||||||
| LD | 0.5 to 12.0kHz | |||||||||||||||||
| ND | 0.5 to 16.0kHz | |||||||||||||||||
| Starting torque*6 | 200%/0.3Hz | |||||||||||||||||
| Braking | Regenerative Braking | Internal BRD circuit (external discharge resistor value) | Ext. regen. braking unit | |||||||||||||||
| Minimum resistance value (Ω) | 50 | 50 | 35 | 35 | 35 | 16 | 10 | 10 | 7.5 | 7.5 | 5 | - | - | - | - | |||
| Protective structure | IP20 - UL Open Type | |||||||||||||||||
| Aprox. weight (kg) | 3 | 3 | 3 | 3 | 3 | 6 | 6 | 6 | 10 | 10 | 10 | 22 | 33 | 33 | 47 | |||
*1
The applicable motor refers to Hitachi standard 3-phase motor (4-pole). To use other motors, be sure to prevent the rated motor current (50Hz) from exceeding the rated output current of the inverter.
*2
Some models require current derating depending on the carrier frequency setting and ambient temperature.
*3
In order to comply with the Low Voltage Directive (VLD), it must be connected to a neutral grounding supply.
- Pollution degree 2 - Overvoltage category 3*4
The power supply capacity is the value of the rated output current at 220V. The value of the impedance at the supply side changes due to the wiring, breaker, input reactor, etc.
*5
Carrier frequency may be limited in the range according to the use of drive.
*6
The value is specified for the Hitachi standard motor controlled by the sensorless vector control when ND rating.
Torque characteristics may vary by the control system and the use of the motor.
400V class specifications
| Model name(P1-???-H) | 00041 | 00054 | 00083 | 00126 | 00175 | 00250 | 00310 | 00400 | 00470 | 00620 | 00770 | 00930 | 01160 | 01470 | 01760 | 02130 | 02520 | 03160 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Applicable motor capacity (4 poles) (kW)*1 | VLD | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | ||
| LD | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | |||
| ND | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | |||
| Output | Rated output current (A)*2 | VLD | 4.1 | 5.4 | 8.3 | 12.6 | 17.5 | 25.0 | 31.0 | 40.0 | 47.0 | 62.0 | 77.0 | 93.0 | 116 | 147 | 176 | 213 | 252 | 316 | |
| LD | 3.1 | 4.8 | 6.7 | 11.1 | 16.0 | 22.0 | 29.0 | 37.0 | 43.0 | 57.0 | 70.0 | 85.0 | 105 | 135 | 160 | 195 | 230 | 290 | |||
| ND | 2.5 | 4.0 | 5.5 | 9.2 | 14.8 | 19.0 | 25.0 | 32.0 | 39.0 | 48.0 | 61.0 | 75.0 | 91.0 | 112 | 150 | 180 | 217 | 260 | |||
| Overload current rating | VLD | 110% 60sec / 120% 3sec | |||||||||||||||||||
| LD | 120% 60sec / 150% 3sec | ||||||||||||||||||||
| ND | 150% 60sec / 200% 3sec | ||||||||||||||||||||
| Rated output voltage | Three-phase (3 wire) 380 to 500 V (Corresponding to the incoming voltage) | ||||||||||||||||||||
| Rated capacity (kVA) | 400V | VLD | 2.8 | 3.7 | 5.7 | 8.7 | 12.1 | 17.3 | 21.4 | 27.7 | 32.5 | 42.9 | 53.3 | 64.4 | 80.3 | 102 | 122 | 148 | 175 | 219 | |
| LD | 2.1 | 3.3 | 4.6 | 7.6 | 11.0 | 15.2 | 20.0 | 25.6 | 29.7 | 39.4 | 48.4 | 58.8 | 72.7 | 93.5 | 111 | 135 | 159 | 201 | |||
| ND | 1.7 | 2.7 | 3.8 | 6.3 | 10.2 | 13.1 | 17.3 | 22.1 | 27.0 | 33.2 | 42.2 | 51.9 | 63.0 | 77.5 | 104 | 125 | 150 | 180 | |||
| 500V | VLD | 3.5 | 4.6 | 7.1 | 10.9 | 15.1 | 21.6 | 26.8 | 34.6 | 40.7 | 53.6 | 66.6 | 80.5 | 100 | 127 | 152 | 184 | 218 | 274 | ||
| LD | 2.6 | 4.1 | 5.8 | 9.6 | 13.8 | 19.0 | 25.1 | 32.0 | 37.2 | 49.3 | 60.6 | 73.6 | 90.9 | 117 | 139 | 169 | 199 | 251 | |||
| ND | 2.1 | 3.4 | 4.7 | 7.9 | 12.8 | 16.4 | 21.6 | 27.7 | 33.7 | 41.5 | 52.8 | 64.9 | 78.8 | 96.9 | 130 | 156 | 188 | 225 | |||
| Input | Rated input AC voltage*3 | Main circuit power supply: Three-phase(3 wire) 380 to 500 V 50Hz/60Hz Control power supply: Single-phase supply 380 to 500 V 50Hz/60Hz | |||||||||||||||||||
| Permissible AC voltage/ Frequency fluctuation*3 | AC voltage:323 to 550V 50/60 Hz, Frequency :±5% | ||||||||||||||||||||
| Power supply capacity (kVA)*4 | VLD | 3.8 | 4.9 | 7.6 | 11.5 | 15.9 | 22.8 | 28.2 | 36.3 | 42.7 | 56.3 | 69.9 | 84.4 | 105 | 133 | 160 | 193 | 229 | 287 | ||
| LD | 2.9 | 4.4 | 6.1 | 10.1 | 14.5 | 20.0 | 26.3 | 33.6 | 39.1 | 51.8 | 63.5 | 77.2 | 95.3 | 123 | 145 | 177 | 209 | 263 | |||
| ND | 2.3 | 3.7 | 5.0 | 8.4 | 13.5 | 17.3 | 22.8 | 29.1 | 35.4 | 43.6 | 55.4 | 68.1 | 82.6 | 102 | 136 | 163 | 197 | 236 | |||
| Carrier frequency variation*5 | VLD | 0.5 to 10.0kHz | 0.5 to 8.0kHz | ||||||||||||||||||
| LD | 0.5 to 12.0kHz | 0.5 to 8.0kHz | |||||||||||||||||||
| ND | 0.5 to 16.0kHz | 0.5 to 10.0kHz | |||||||||||||||||||
| Starting torque*6 | 200%/0.3Hz | 180%/0.3Hz | |||||||||||||||||||
| Braking | Regenerative Braking | Internal BRD circuit (external discharge resistor value) | *7 | Ext. regen. braking unit | |||||||||||||||||
| Minimum resistance value (Ω) | 100 | 100 | 100 | 70 | 70 | 35 | 35 | 24 | 24 | 20 | 15 | 15 | 10 | 10 | - | - | - | - | |||
| Protective structure | IP20 – UL Open Type | ||||||||||||||||||||
| Aprox. weight (kg) | 3 | 3 | 3 | 3 | 6 | 6 | 6 | 8.5 | 8.5 | 8.5 | 22 | 31 | 31 | 31 | 41 | 41 | 53 | 53 | |||
| Model name(P1-???-H) | 03720 | 04320 | 04860 | 05200 | 05500 | 06600 | |||
|---|---|---|---|---|---|---|---|---|---|
| Applicable motor capacity (4 poles) (kW)*1 | VLD | 185 | 200 | 220 | 250 | - | - | ||
| LD | 185 | 200 | 220 | 250 | 280 | 355 | |||
| ND | 160 | 185 | 200 | 220 | 250 | 315 | |||
| Output | Rated output current (A)*2 | VLD | 372 | 432 | 486 | 520 | - | - | |
| LD | 341 | 395 | 446 | 481 | 550 | 660 | |||
| ND | 310 | 370 | 405 | 450 | 500 | 600 | |||
| Overload current rating | VLD | 110% 60sec / 120% 3sec | - | - | |||||
| LD | 120% 60sec / 150% 3sec | ||||||||
| ND | 150% 60sec / 200% 3sec | ||||||||
| Rated output voltage | Three-phase (3 wire) 380 to 500 V (Corresponding to the incoming voltage) | ||||||||
| Rated capacity (kVA) | 400V | VLD | 258 | 299 | 337 | 360 | - | - | |
| LD | 236 | 274 | 309 | 333 | 381 | 457 | |||
| ND | 215 | 256 | 281 | 312 | 346 | 416 | |||
| 500V | VLD | 322 | 374 | 421 | 450 | - | - | ||
| LD | 295 | 342 | 386 | 417 | 476 | 572 | |||
| ND | 268 | 320 | 351 | 390 | 433 | 520 | |||
| Input | Rated input AC voltage*3 | Main circuit power supply: Three-phase(3 wire) 380 to 500 V 50Hz/60Hz Control power supply: Single-phase supply 380 to 500 V 50Hz/60Hz | |||||||
| Permissible AC voltage/ Frequency fluctuation*3 | AC voltage:323 to 550V 50/60 Hz, Frequency :±5% | ||||||||
| Power supply capacity (kVA)*4 | VLD | 338 | 392 | 441 | 472 | - | - | ||
| LD | 310 | 358 | 405 | 436 | 499 | 599 | |||
| ND | 281 | 336 | 368 | 408 | 454 | 544 | |||
| Carrier frequency variation*5 | VLD | 0.5 to 8.0kHz | - | - | |||||
| LD | 0.5 to 8.0kHz | ||||||||
| ND | 0.5 to 10.0kHz | ||||||||
| Starting torque*6 | 180%/0.3Hz | ||||||||
| Braking | Regenerative Braking | Ext. regen. braking unit | |||||||
| Minimum resistance value (Ω) | - | - | - | - | - | - | |||
| Protective structure | IP20 – UL Open Type | ||||||||
| Aprox. weight (kg) | 95 | 125 | 125 | 125 | 125 | 170 | |||
