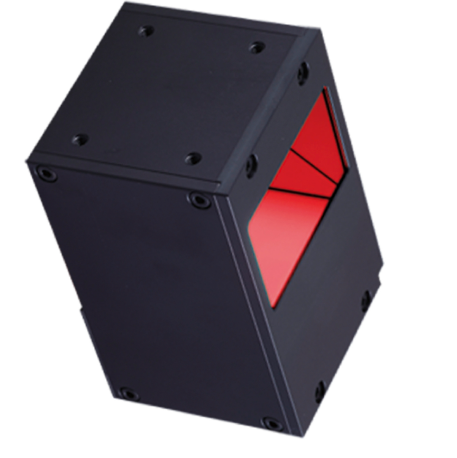

日本CCS希希愛視同軸照明燈LFV3-CP-18SW-FL
LFV3 Series

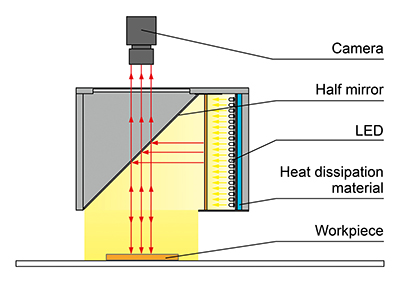

These Coaxial Lights have a half mirror to align the diffused light from the LED array to the same optical axis as the camera lens.
Mirror surface workpieces are uniformly illuminated without unevenness.
The diffusion plate is adjustable and exchangeable.
Download Pamphlet PDF
Customize the diffusion 1) Prepared two types of diffusion plates with different transmittance rate. Replace the diffusion plate to change the transmittance rate. 2) The installation position of the diffusion plate can be adjusted. Change the position to achieve various imaging effects. LFV3-CP series Replacing the half-mirror with a beam splitter increased accuracy. It is perfect for tiny workpieces and environments with limited installation space. Highly-accurate optical glass is used for the camera window and the half-mirror. This allows for stable imaging when using high-resolution cameras. LFV3 series, a Coaxial Light with improved quality By using the half mirror, diffused light from the LED is illuminated on the same axis as the camera axis. LFV3-100Features
Freely customize the diffusion
Diffusion plate status Result Change the transmittance rate from (high) to (low) Increased uniformity Change the installation position to the LED side Emphasized directionality

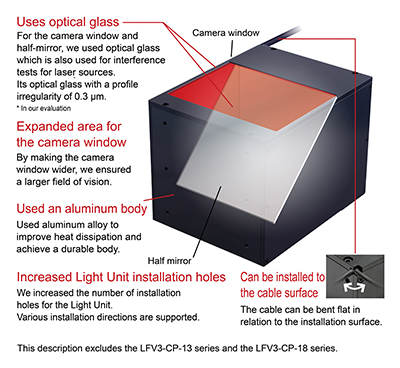

Coaxial Light that supports high-resolution cameras
Example configuration
