日本新寶閃頻儀DT311J
日本新寶閃頻儀DT311J
日本新寶閃頻儀DT311J

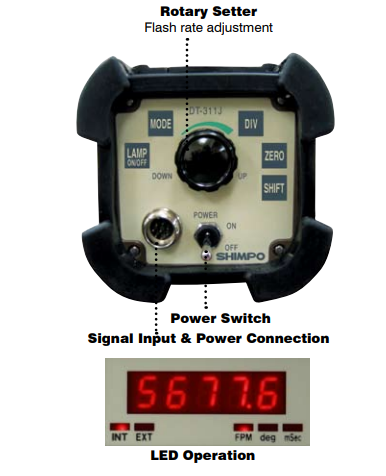

DT-311J NEMA 4X 頻閃儀適用于惡劣潮濕的工作區域 在紡織行業需要強大的照明和堅固的速度測量精度的地方，DT-311J 可以滿足其他頻閃儀無法完成的任務。DT-311J用于設定織機的噴緯定時、噴緯壓力、開口定時和緯紗運行時間。裝置將堅固的 NEMA 4X (IP65) 外殼與高性能精度、特殊相移、減震組件和頂部安裝手柄相結合，使設備操作員在設置織機定時時具有*大的靈活性。
0 – 359° / 1° incrementsFlash Rate/Phase Angle Setter Rotary dialDisplay 4 digit 0.39 in (10 mm) high red LEDDivide Ratio 1/1, ?, 1/3, ?, 2/4 with shiftInput Signal High level: 5-24 V pulse; Low Level: 0-1 V pulse. 2 msec minimum. Impedance less than 10k ΩInput Impedance 47kDisplay Mode Phase shift (degree), TachometerAccuracy ±1 digitInternal Signal Range 200-1500 FPMFlash Range 200-1500 FPMFlashTube Xenon lamp Max: 10w at 1,500 rpm. Life: 1,200 hours at 1,500 rpmPower Requirement 115VAC±5% 50/60HzPower Consumption 20VA maxOperating Temperature 32 to 104°F (0 to 40°C)Product Weight 4.2 lbs (1.9 kg)Package Weight 6.2 lbs (2.81 kg)Included Accessories 19.68’ (6m) input/power cable with connector, rubber strobe guard w/ handleD
