日本CCS方形照明燈FPQ3-75SW

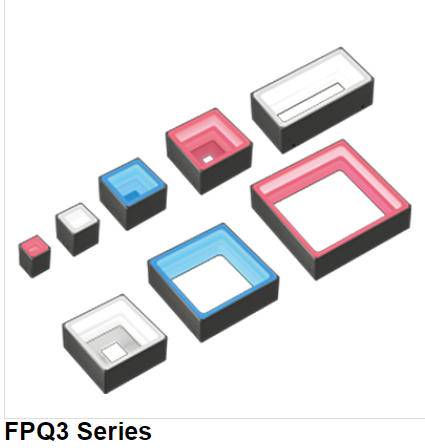

 FPQ3 Series
* Low-angle Light Units perfect for square workpieces:
detecting the outline of corners and preventing glare.
* Achieved high output up to double that of conventional products.
* 8 sizes and a total of 24 models.
* Installation holes on the top and lateral surfaces increase installation flexibility.

Product Lineup

Features Imaging Example Custom Order Example Options Video
Features
High-Output (2x Conventional Products)
Output has been increased by 2x for white and blue, 1.5x for red Light Units.
Furthermore, output is more than doubled when used with a POD-series Strobe Overdrive Control Unit.
Comparison of the conventional products of the same color. The data included is for reference only. Actual values may vary.

High-Output Double That of Conventional Products(image)

Expanded Line with 8 Sizes and a Total of 24 Models
External sizes of 60 × 60 mm and 50 × 100 mm (rectangular type) are supported.
The outer dimensions are not changed for the products of the same size as the conventional products.

Expanded Line with 8 Sizes and a Total of 24 Models(image)

Perfect for Square Workpieces
Light from the LEDs installed above is transmitted through the light-guiding diffusion plate and diffused light is illuminated from four directions on the workpiece from a low angle.
This is perfect for square workpieces.
Perfect for Square Workpieces(image)

When Captured with an LED Ring Light(Glare from the surface of the film makes it difficult to recognize the presence of the part.)--When Captured with a
Low-Angle Square Light(The glare is removed, making it possible to recognize the presence of the part.)

High-Flexibility in Installation
Newly added installation holes on the lateral surfaces of all models increase installation flexibility.
The products of the same size of the conventional products can be installed with the same holes.
