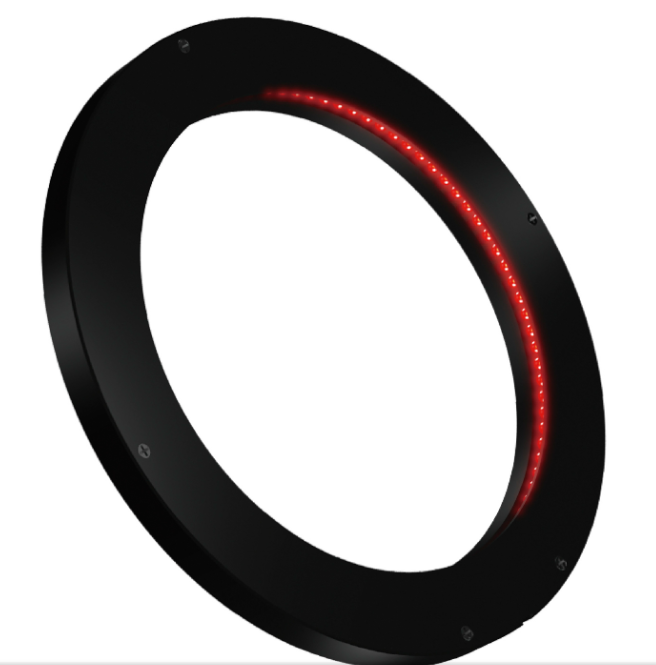

日本CCS低角度環形燈LDR-75BL2-LA1
發布時間：2024-04-19
日本CCS低角度環形燈LDR-75BL2-LA1
日本CCS低角度環形燈LDR-75BL2-LA1
Product Details
LED color Blue
Peak wavelength 470 nm typ.
Dimensions Outer diameter 176 mm, Inner diameter 140 mm, Height 10 mm
Input voltage 24VDC
Power consumption 7.6 W max.
Polarity & signal 1: (+), 2: NC, 3: (-)
Cable length 300 mm
Case material Aluminum alloy
Input connector SMR-03V-B
Conformed standards CE, UKCA, RoHS, IEC 62471（Low risk）
Operating temperature and humidity Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method Natural air cooling
Weight 205 g max.
Accessories Handling Precautions
