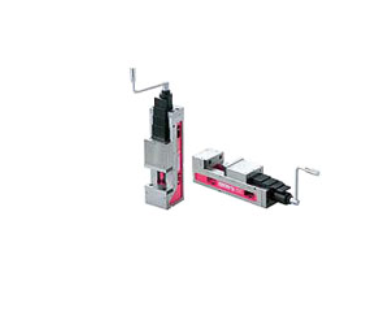

日本eron-nabeya雅朗虎鉗LTFV-125H
日本eron-nabeya雅朗虎鉗LTFV-125H
Loctite Quick ONE Vise (LTFV125Q)
Part Number: LTFV125Q
The mechanical pressure increase mechanism can easily increase the pressure in 1 rotation, with minimal effect of changing temperature on the tightening force and no tool replacement, etc., required. Easy to set the tightening force by simply turning the adjustment dial by hand. Once the tightening force is set, the structure allows operation only at that tightening force. LTFH type is a vertical/horizontal machining center type that's used with angle plate adhered.
Configured Specifications
Mouth Width(mm) 125 Mouth Depth(mm) 50
Maximum Opening(mm) 200 Standard guide block width(mm) 18
Tightening Force(kN) 30 Mass(kg) 35
Standard mounting bolt BCS-18B Specification -
A(mm) 455 Dimension B(mm) 560
Dimension C(mm) 175 Dimension D(mm) 125
