日本TRONIC探針POGO-25J-4-S/POGO-251-4-S/POGO-25T30-4-S
日本TRONIC探針POGO-25J-4-S/POGO-251-4-S/POGO-25T30-4-S
Electrical Current Rating (Amps): 8
Average Probe Resistance (mOhm): 8
Materials & Finishes Barrel Material: Work-hardened Phosphor Bronze, Gold plated over hard Nickel
Plunger Material: Heat-treated BeCu or tool Steel, Gold plated over hard Nickel
Ball Material: Stainless Steel
Spring Material
Type: Light Material: Stainless Steel
Type: Standard Material: Stainless Steel
Type: Alternate Material: Stainless Steel
Type: Elevated Material: Stainless Steel
Type: High Material: Stainless Steel
Type: Ultra High Material: Stainless Steel
Type: Super Material: Stainless Steel
Mechanical Test Center (mil): 100
Test Center (mm): 2.54
Full Travel (mil): 250
Full Travel (mm): 6.35
Recommended Travel (mil): 167
Recommended Travel (mm): 4.24
Mechanical Life (no of cyles): 1,000,000

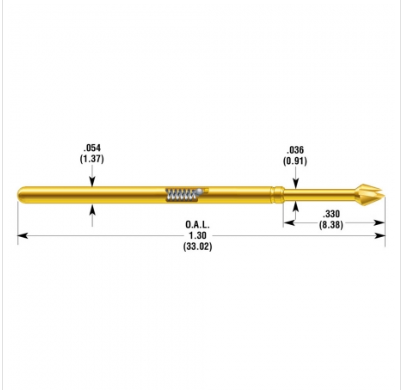

Overall Length (mil): 1,300
Overall Length (mm): 33.02
Thermal Min Operating Temp (°C): -55
Max Operating Temp (°C): 150
