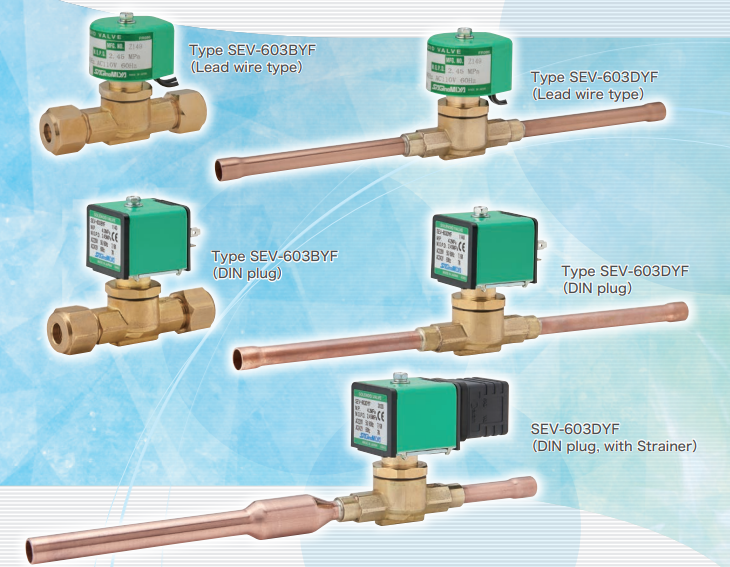

日本鷺宮電磁閥SEV-603BYF*A1R
FEATURE COMMON SPECIFICATIONSSPECIFICATIONS●Max. Working Pressure：4.2MPa ●Fluid temperature：－40 to 125℃ ●Ambient temperature：－30 to 50℃ ●Normally closed valveApplicationsNEW179.811.5 (64)38.593618φ26.5リード線長さ30043φ26.59.8(58)1711.579179.874426511.5φ26.5Lead Wire（AC coil、IP67）Lead Wire（DC coil、IP67）DIN plug（with socket、IP65）Unit：mmSEV-1506BYFFluidPressure ClassConnection StylePipe O. D.Port SizeCondensing units, Cooling units, Chillers, Dehumidifiers, Air Conditioning, Industrial applications●Versatile valve body and coil lineup enable wider applications.●Capable of handling various low GWP refrigerant (R448, R449A and others)●Strainer is installed in flare connection models. Solder connection models with strainer are also availablefor some sizes. (type Q50)●Coil can be used in common, regardless of valve body and connections size.
TYPE NUMBER SELECTION Unit：MPa {kgf/cm2}Catalog No. Port Size（mm）CvValueConnection O.P.D.（MPa） Strainer Wt.Type Model No. Fluid Special Application Style Copper pipe O.D. Min. Max. （kg）SEV303BYF（Various refrigerant*1）A(Air）C（Others）－3 0.25Flare3/8”02.45{25}for AC1.96{20}for DCWith502BY 5 0.51 1/4" 0.4603BY 6 0.80 3/8"1004BY 10 1.75 1/2" 0.007{0.07}0.71205BY 12 2.9 5/8" 1.01506BY 15 4.5 3/4" 1.4303DY 3 0.25Solder3/8"0Without0.25502DY 5 0.53 1/4" 0.3603DY 6 0.83 3/8" 0.351004DY 10 2.0 1/2" 0.007{0.07}0.71205DY 12 3.5 5/8" 0.81506DY 15 5.3 3/4" 1.0502DY F（Various refrigerant*1）Q50*2 5 0.53Solder1/4"0 With 0.4603DY 6 0.83 3/8" Q300*3 Without 0.25*1 R22, R134a, R404A, R407C, R410A, R448A, R449A（For other Refrigerants, please contact us） ?Weight includes coil, (in case of AC Coil with lead wire)*2 With Strainer*3 Short connection model, Please refer to dimensions for details
