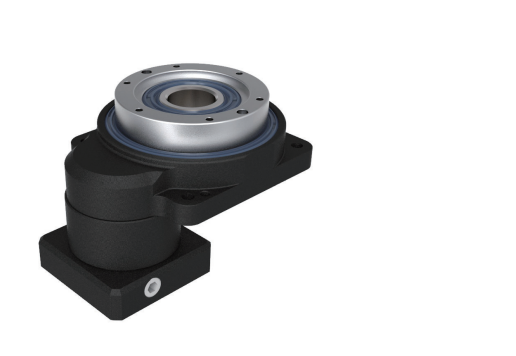

本ATG減速機KGT-200B-50
ndication of Model NumbersKGT 60 B 10 MOTORType Model Output Table Supporting Bearing Ratio Motor TypeKGT 6085110135200 B : Ball Bearing C : Cross Roller Bearing H : Ball Bearing (60#) / Cross Roller Bearing (85# ~ 250#)1-Stage5, 10, 182-Stage25, 50, 100Motor Brand & Model No.
Characteristic Unit KGT-60B Output Table Supporting Bearing Ball Bearing Rated Output Torque T2N Nm 5 Max. Output Torque Emergency Stop Torque T2NOT Nm 2 Time of Rated Output Torque Inertia Moment kg.m2 777 x 10-7 Output Permissible Speed n2 rpm 300 Lost Motion arcmin 2 (0.033° ) Repetitive Positioning Accuracy arcsec ± 10 (0.0028° ) Permissible Thrust Load F2aB N 350 Permissible Moment Load Nm 7 Runout of Output Table Surface mm 0.01 Runout of Output Table Inner / Outer Diameter mm 0.01 Parallelism of Output Table mm 0.02 Protection Class IP 65 Weight ± 3% kg 0.54
