日本KONSEI近藤卡盤HLC20-AS HMF-20AS
發布時間：2024-03-21

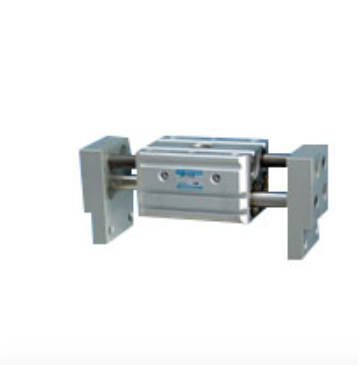

Air Gripper (HMF-20AS)
Low Height, Wide Opening, Parallel Type, HMF Series
Part Number: HMF-20AS
?How to Grip : Open, Parallel Type, Pinch, Parallel Type
?Main Body Shape : Square Shape (Wide)
For complete product overview and details on Hands: HMF Series Compact Crab Type Parallel Hand see the sections below:
Configured Specifications
How Grip Inserted Parallel Type / Parallel Type of Opening Number of Fingers 2 Pcs.
Type Main Body Main Body Shape Square type (wide width)
Environment, Applications Standard Additional Function No
Stroke Adjustment Mechanism No Cylinder Dia.(φ) 20X2
Rod Diameter(φ) 10 Action Stroke(mm) 40
Stroke Type Standard Option No
