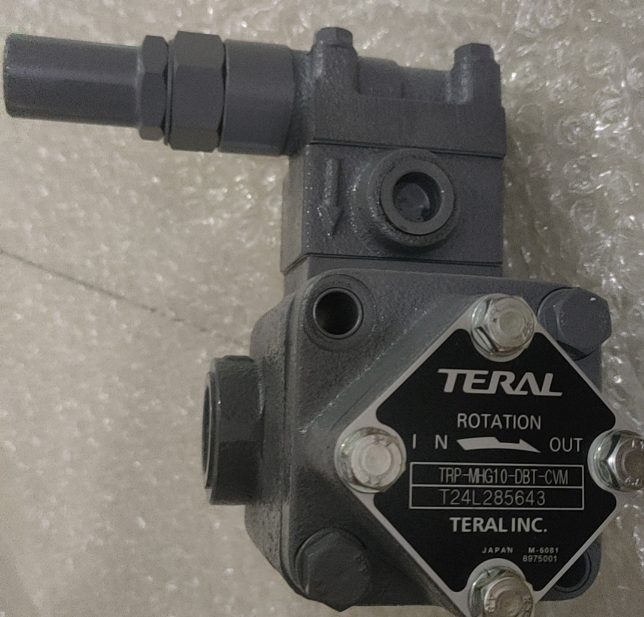

日本TERAL泰拉爾油泵TRP-MHG10-DBT-65FKC-CVM
日本TERAL泰拉爾油泵TRP-MHG10-DBT-65FKC-CVM
TRP-M
Oil pumps

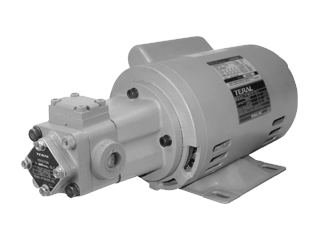

Small flow, low pressure, equipped with motor, internal gear, 4-pole, close coupled type
Product description
①Easy-to-use and compact
Because it is an internal gear type pump, it is easy-to-use, ideally compact and light in weight compared to other pumps of the same capacity.
②High volume efficiency
High volume efficiency compared to a gear pump.
③Easy maintenance
Simple in structure. Also disassembly and inspection is easy.
④Low-noise
Generates low noise characteristic of internal gears compared to gear pumps and other types of pumps.
⑤Small pulsation
Small pulsation of oil flow compared to external gear pumps.
⑥Suitable for low speed and high speed
Can be used for any speed from 500 ? 2000 rotations per minute.
The maximum rotation speed varies depending on the model. Refer to the model list.
⑦High suction force
⑧Wide variation
Choose the volume and model you want. Some replacement parts are compatible.
Applications
Fuel transfer
Forced lubrication
Pumped liquid
Industrial lubricating oil, hydraulic oil
Liquid temperature
0 ～ 50℃
