Model	Size	Dynamic friction torque Td ［N?m］	Static friction torque Ts ［N?m］	Coil (at 20℃)				Heat resistance class	Lead wire		Max. rotation speed ［min^-1］	Armature Moment of inertia J [kg·m²]	Total work performed until readjustment of the air gap ET ［J］	Armature pull-in time ta ［s］	Torque rise time tp ［s］	Torque extinction time td ［s］	Mass ［kg］
Model	Size	Dynamic friction torque Td ［N?m］	Static friction torque Ts ［N?m］	Voltage ［V］	Wattage ［W］	Current ［A］	Resistance ［Ω］	Heat resistance class	UL style	Size	Max. rotation speed ［min^-1］	Armature Moment of inertia J [kg·m²]		Armature pull-in time ta ［s］	Torque rise time tp ［s］	Torque extinction time td ［s］	Mass ［kg］
111-06-13G	06	5	5.5	DC24	11	0.46	52	B	UL3398	AWG22	8000	4.23×10^-5	36×10⁶	0.015	0.033	0.015	0.28
111-06-12G	06	5	5.5	DC24	11	0.46	52	B	UL3398	AWG22	8000	6.03×10^-5	36×10⁶	0.015	0.033	0.015	0.32
111-06-11G	06	5	5.5	DC24	11	0.46	52	B	UL3398	AWG22	8000	6.03×10^-5	36×10⁶	0.015	0.033	0.015	0.32
111-08-13G	08	10	11	DC24	15	0.63	38	B	UL3398	AWG18	6000	1.18×10^-4	60×10⁶	0.016	0.042	0.025	0.5
111-08-12G	08	10	11	DC24	15	0.63	38	B	UL3398	AWG18	6000	1.71×10^-4	60×10⁶	0.016	0.042	0.025	0.58
111-08-11G	08	10	11	DC24	15	0.63	38	B	UL3398	AWG18	6000	1.71×10^-4	60×10⁶	0.016	0.042	0.025	0.58
111-10-13G	10	20	22	DC24	20	0.83	29	B	UL3398	AWG18	5000	4.78×10^-4	130×10⁶	0.018	0.056	0.030	0.91
111-10-12G	10	20	22	DC24	20	0.83	29	B	UL3398	AWG18	5000	6.63×10^-4	130×10⁶	0.018	0.056	0.030	1.07
111-10-11G	10	20	22	DC24	20	0.83	29	B	UL3398	AWG18	5000	6.63×10^-4	130×10⁶	0.018	0.056	0.030	1.07
111-12-13G	12	40	45	DC24	25	1.04	23	B	UL3398	AWG18	4000	1.31×10^-3	250×10⁶	0.027	0.090	0.050	1.68
111-12-12G	12	40	45	DC24	25	1.04	23	B	UL3398	AWG18	4000	1.81×10^-3	250×10⁶	0.027	0.090	0.050	1.97
111-12-11G	12	40	45	DC24	25	1.04	23	B	UL3398	AWG18	4000	1.81×10^-3	250×10⁶	0.027	0.090	0.050	1.97
111-16-13G	16	80	90	DC24	35	1.46	16	B	UL3398	AWG18	3000	4.80×10^-3	470×10⁶	0.035	0.127	0.055	3.15
111-16-12G	16	80	90	DC24	35	1.46	16	B	UL3398	AWG18	3000	6.35×10^-3	470×10⁶	0.035	0.127	0.055	3.45
111-16-11G	16	80	90	DC24	35	1.46	16	B	UL3398	AWG18	3000	6.35×10^-3	470×10⁶	0.035	0.127	0.055	3.45
111-20-13G	20	160	175	DC24	45	1.88	13	B	UL3398	AWG16	2500	1.37×10^-2	10×10⁸	0.065	0.200	0.070	5.9
111-20-12G	20	160	175	DC24	45	1.88	13	B	UL3398	AWG16	2500	1.90×10^-2	10×10⁸	0.065	0.200	0.070	7.1
111-20-11G	20	160	175	DC24	45	1.88	13	B	UL3398	AWG16	2500	1.90×10^-2	10×10⁸	0.065	0.200	0.070	7.1
111-25-13G	25	320	350	DC24	60	2.5	9.6	B	UL3398	AWG16	2000	3.58×10^-2	20×10⁸	0.085	0.275	0.125	10.5
111-25-12G	25	320	350	DC24	60	2.5	9.6	B	UL3398	AWG16	2000	4.83×10^-2	20×10⁸	0.085	0.275	0.125	12.2
111-25-11G	25	320	350	DC24	60	2.5	9.6	B	UL3398	AWG16	2000	4.83×10^-2	20×10⁸	0.085	0.275	0.125	12.2

*The dynamic friction torque, Td, is measured at a relative speed of 100 min-1. Depending on the initial torque characteristics, break-in to condition the engaging surfaces may also be required.

*The rotating part moment of inertia and mass are measured for the maximum bore diameter.

[Dimensions]

111-□-13G

Unit ［mm］

Size	Radial direction dimensions											Axial direction dimensions
Size	A1	A2	A3	C1	C2	C3	V1	V2	V3	Y	Z	H	J	K	L	P	X	a
06	63	46	34.5	80	72	35	3-3.1	3-6.3	3-5.5	5	6-60°	18	3.5	2.1	22	7.3	2.5	0.2±0.05
08	80	60	41.7	100	90	42	3-4.1	3-8	3-7	6	6-60°	20	4.3	2.6	24.5	8.3	2.85	0.2±0.05
10	100	76	51.5	125	112	52	3-5.1	3-11	3-9	7	6-60°	22	5	3.1	28.1	9	3.3	0.2±0.05
12	125	95	61.5	150	137	62	3-6.1	3-12	3-11	7	6-60°	24	5.5	3.6	31	9.3	3.3	0.3^+0.05_-0.1
16	160	120	79.5	190	175	80	3-8.2	3-15	3-14	9.5	6-60°	26	6	4.1	35	11.7	3.5	0.3^+0.05_-0.1
20	200	158	99.5	230	215	100	3-10.2	3-18	3-16.2	9.5	6-60°	30	7	5.1	41.4	13.4	4.9	0.5⁰_-0.2
25	250	210	124.5	290	270	125	4-12.2	4-22	4-20	11.5	8-45°	35	8	6.1	47.9	16	5.5	0.5⁰_-0.2

111-□-13G

[Dimensions]

111-□-12G

上一篇：日本MIKI PULLEY三木電磁離合器111-25-11G 下一篇：日本MIKI PULLEY三木電磁離合器111-20-13G/111-20-12G

返回列表

亚洲精品免费在线视频,在线你懂的网站,自拍偷拍欧美图片,亚洲成av人在线视,亚洲国产成人在线观看,在线视频第一页

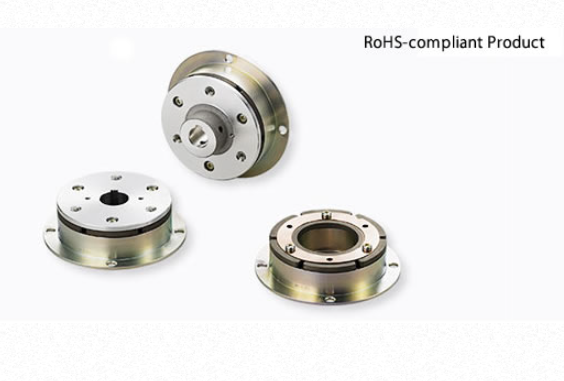

111 Models (brakes) Specifications
