日本MIKI PULLEY三木電磁離合器111-10-11G/111-12-11G
發布時間：2024-10-12
日本MIKI PULLEY三木電磁離合器111-10-11G/111-12-11G
日本MIKI PULLEY三木電磁離合器111-10-11G/111-12-11G

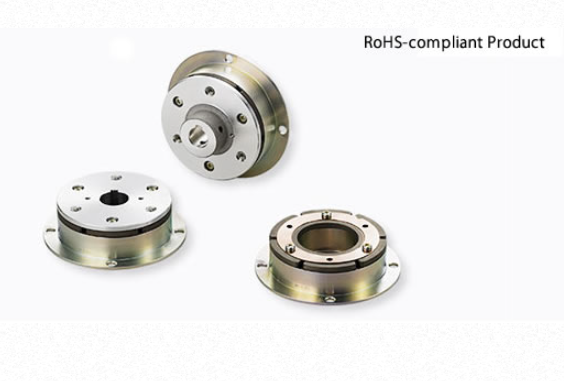

111 Models (brakes) Specifications
111 Models
[Specifications]
| Model | Size | Dynamic friction torque Td ［N?m］ | Static friction torque Ts ［N?m］ | Coil (at 20℃) | Heat resistance class | Lead wire | Max. rotation speed ［min-1］ | Armature Moment of inertia J [kg·m2] | Total work performed until readjustment of the air gap ET ［J］ | Armature pull-in time ta ［s］ | Torque rise time tp ［s］ | Torque extinction time td ［s］ | Mass ［kg］ | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage ［V］ | Wattage ［W］ | Current ［A］ | Resistance ［Ω］ | UL style | Size | ||||||||||||
| 111-06-13G | 06 | 5 | 5.5 | DC24 | 11 | 0.46 | 52 | B | UL3398 | AWG22 | 8000 | 4.23×10-5 | 36×106 | 0.015 | 0.033 | 0.015 | 0.28 |
| 111-06-12G | 06 | 5 | 5.5 | DC24 | 11 | 0.46 | 52 | B | UL3398 | AWG22 | 8000 | 6.03×10-5 | 36×106 | 0.015 | 0.033 | 0.015 | 0.32 |
| 111-06-11G | 06 | 5 | 5.5 | DC24 | 11 | 0.46 | 52 | B | UL3398 | AWG22 | 8000 | 6.03×10-5 | 36×106 | 0.015 | 0.033 | 0.015 | 0.32 |
| 111-08-13G | 08 | 10 | 11 | DC24 | 15 | 0.63 | 38 | B | UL3398 | AWG18 | 6000 | 1.18×10-4 | 60×106 | 0.016 | 0.042 | 0.025 | 0.5 |
| 111-08-12G | 08 | 10 | 11 | DC24 | 15 | 0.63 | 38 | B | UL3398 | AWG18 | 6000 | 1.71×10-4 | 60×106 | 0.016 | 0.042 | 0.025 | 0.58 |
| 111-08-11G | 08 | 10 | 11 | DC24 | 15 | 0.63 | 38 | B | UL3398 | AWG18 | 6000 | 1.71×10-4 | 60×106 | 0.016 | 0.042 | 0.025 | 0.58 |
| 111-10-13G | 10 | 20 | 22 | DC24 | 20 | 0.83 | 29 | B | UL3398 | AWG18 | 5000 | 4.78×10-4 | 130×106 | 0.018 | 0.056 | 0.030 | 0.91 |
| 111-10-12G | 10 | 20 | 22 | DC24 | 20 | 0.83 | 29 | B | UL3398 | AWG18 | 5000 | 6.63×10-4 | 130×106 | 0.018 | 0.056 | 0.030 | 1.07 |
| 111-10-11G | 10 | 20 | 22 | DC24 | 20 | 0.83 | 29 | B | UL3398 | AWG18 | 5000 | 6.63×10-4 | 130×106 | 0.018 | 0.056 | 0.030 | 1.07 |
| 111-12-13G | 12 | 40 | 45 | DC24 | 25 | 1.04 | 23 | B | UL3398 | AWG18 | 4000 | 1.31×10-3 | 250×106 | 0.027 | 0.090 | 0.050 | 1.68 |
| 111-12-12G | 12 | 40 | 45 | DC24 | 25 | 1.04 | 23 | B | UL3398 | AWG18 | 4000 | 1.81×10-3 | 250×106 | 0.027 | 0.090 | 0.050 | 1.97 |
| 111-12-11G | 12 | 40 | 45 | DC24 | 25 | 1.04 | 23 | B | UL3398 | AWG18 | 4000 | 1.81×10-3 | 250×106 | 0.027 | 0.090 | 0.050 | 1.97 |
| 111-16-13G | 16 | 80 | 90 | DC24 | 35 | 1.46 | 16 | B | UL3398 | AWG18 | 3000 | 4.80×10-3 | 470×106 | 0.035 | 0.127 | 0.055 | 3.15 |
| 111-16-12G | 16 | 80 | 90 | DC24 | 35 | 1.46 | 16 | B | UL3398 | AWG18 | 3000 | 6.35×10-3 | 470×106 | 0.035 | 0.127 | 0.055 | 3.45 |
| 111-16-11G | 16 | 80 | 90 | DC24 | 35 | 1.46 | 16 | B | UL3398 | AWG18 | 3000 | 6.35×10-3 | 470×106 | 0.035 | 0.127 | 0.055 | 3.45 |
| 111-20-13G | 20 | 160 | 175 | DC24 | 45 | 1.88 | 13 | B | UL3398 | AWG16 | 2500 | 1.37×10-2 | 10×108 | 0.065 | 0.200 | 0.070 | 5.9 |
| 111-20-12G | 20 | 160 | 175 | DC24 | 45 | 1.88 | 13 | B | UL3398 | AWG16 | 2500 | 1.90×10-2 | 10×108 | 0.065 | 0.200 | 0.070 | 7.1 |
| 111-20-11G | 20 | 160 | 175 | DC24 | 45 | 1.88 | 13 | B | UL3398 | AWG16 | 2500 | 1.90×10-2 | 10×108 | 0.065 | 0.200 | 0.070 | 7.1 |
| 111-25-13G | 25 | 320 | 350 | DC24 | 60 | 2.5 | 9.6 | B | UL3398 | AWG16 | 2000 | 3.58×10-2 | 20×108 | 0.085 | 0.275 | 0.125 | 10.5 |
| 111-25-12G | 25 | 320 | 350 | DC24 | 60 | 2.5 | 9.6 | B | UL3398 | AWG16 | 2000 | 4.83×10-2 | 20×108 | 0.085 | 0.275 | 0.125 | 12.2 |
| 111-25-11G | 25 | 320 | 350 | DC24 | 60 | 2.5 | 9.6 | B | UL3398 | AWG16 | 2000 | 4.83×10-2 | 20×108 | 0.085 | 0.275 | 0.125 | 12.2 |
*The dynamic friction torque, Td, is measured at a relative speed of 100 min-1. Depending on the initial torque characteristics, break-in to condition the engaging surfaces may also be required.
*The rotating part moment of inertia and mass are measured for the maximum bore diameter.
[Dimensions]
111-□-13G
Unit ［mm］
| Size | Radial direction dimensions | Axial direction dimensions | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A1 | A2 | A3 | C1 | C2 | C3 | V1 | V2 | V3 | Y | Z | H | J | K | L | P | X | a | ||
| 06 | 63 | 46 | 34.5 | 80 | 72 | 35 | 3-3.1 | 3-6.3 | 3-5.5 | 5 | 6-60° | 18 | 3.5 | 2.1 | 22 | 7.3 | 2.5 | 0.2±0.05 | |
| 08 | 80 | 60 | 41.7 | 100 | 90 | 42 | 3-4.1 | 3-8 | 3-7 | 6 | 6-60° | 20 | 4.3 | 2.6 | 24.5 | 8.3 | 2.85 | 0.2±0.05 | |
| 10 | 100 | 76 | 51.5 | 125 | 112 | 52 | 3-5.1 | 3-11 | 3-9 | 7 | 6-60° | 22 | 5 | 3.1 | 28.1 | 9 | 3.3 | 0.2±0.05 | |
| 12 | 125 | 95 | 61.5 | 150 | 137 | 62 | 3-6.1 | 3-12 | 3-11 | 7 | 6-60° | 24 | 5.5 | 3.6 | 31 | 9.3 | 3.3 | 0.3+0.05-0.1 | |
| 16 | 160 | 120 | 79.5 | 190 | 175 | 80 | 3-8.2 | 3-15 | 3-14 | 9.5 | 6-60° | 26 | 6 | 4.1 | 35 | 11.7 | 3.5 | 0.3+0.05-0.1 | |
| 20 | 200 | 158 | 99.5 | 230 | 215 | 100 | 3-10.2 | 3-18 | 3-16.2 | 9.5 | 6-60° | 30 | 7 | 5.1 | 41.4 | 13.4 | 4.9 | 0.50-0.2 | |
| 25 | 250 | 210 | 124.5 | 290 | 270 | 125 | 4-12.2 | 4-22 | 4-20 | 11.5 | 8-45° | 35 | 8 | 6.1 | 47.9 | 16 | 5.5 | 0.50-0.2 | |
[Dimensions]
111-□-12G
Unit ［mm］
| Size | Radial direction dimensions | Axial direction dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C1 | C2 | C3 | Y | H | J | K | L | M | P | a | |
| 06 | 63 | 80 | 72 | 35 | 5 | 18 | 3.5 | 2.1 | 25.5 | 15 | 7.3 | 0.2±0.05 |
| 08 | 80 | 100 | 90 | 42 | 6 | 20 | 4.3 | 2.6 | 28.5 | 20 | 8.3 | 0.2±0.05 |
| 10 | 100 | 125 | 112 | 52 | 7 | 22 | 5 | 3.1 | 33.1 | 25 | 9 | 0.2±0.05 |
| 12 | 125 | 150 | 137 | 62 | 7 | 24 | 5.5 | 3.6 | 37 | 30 | 9.3 | 0.3+0.05-0.1 |
| 16 | 160 | 190 | 175 | 80 | 9.5 | 26 | 6 | 4.1 | 42 | 38 | 11.7 | 0.3+0.05-0.1 |
| 20 | 200 | 230 | 215 | 100 | 9.5 | 30 | 7 | 5.1 | 50.4 | 45 | 13.4 | 0.50-0.2 |
| 25 | 250 | 290 | 270 | 125 | 11.5 | 35 | 8 | 6.1 | 58.9 | 54 | 16 | 0.50-0.2 |
Unit ［mm］
| Size | Shaft bore dimensions | ||||
|---|---|---|---|---|---|
| d H7 | Models compliant with JIS standards | Models compliant with the old JIS standards | |||
| b P9 | t | b P9 | t | ||
| 06 | 12 | 4-0.012-0.042 | 1.5+0.50 | 4+0.050+0.020 | 1.5+0.50 |
| 15 | 5-0.012-0.042 | 2+0.50 | 5+0.050+0.020 | 2+0.50 | |
| 08 | 15 | 5-0.012-0.042 | 2+0.50 | 5+0.050+0.020 | 2+0.50 |
| 20 | 6-0.012-0.042 | 2.5+0.50 | 5+0.050+0.020 | 2+0.50 | |
| 10 | 20 | 6-0.012-0.042 | 2.5+0.50 | 5+0.050+0.020 | 2+0.50 |
| 25 | 8-0.015-0.051 | 3+0.50 | 7+0.061+0.025 | 3+0.50 | |
| 12 | 25 | 8-0.015-0.051 | 3+0.50 | 7+0.061+0.025 | 3+0.50 |
| 30 | 8-0.015-0.051 | 3+0.50 | 7+0.061+0.025 | 3+0.50 | |
| 16 | 30 | 8-0.015-0.051 | 3+0.50 | 7+0.061+0.025 | 3+0.50 |
| 40 | 12-0.018-0.061 | 3+0.50 | 10+0.061+0.025 | 3.5+0.50 | |
| 20 | 40 | 12-0.018-0.061 | 3+0.50 | 10+0.061+0.025 | 3.5+0.50 |
| 50 | 14-0.018-0.061 | 3.5+0.50 | 12+0.075+0.032 | 3.5+0.50 | |
| 25 | 50 | 14-0.018-0.061 | 3.5+0.50 | 12+0.075+0.032 | 3.5+0.50 |
| 60 | 18-0.018-0.061 | 4+0.50 | 15+0.075+0.032 | 5+0.50 | |
