日本三木MIKIPULLEY聯軸器SFC-050DA2-18B-24B
發布時間：2024-10-09

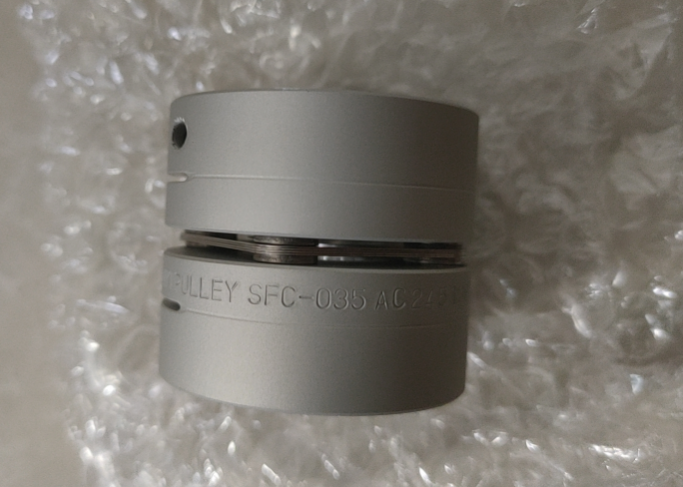

日本三木MIKIPULLEY聯軸器SFC-050DA2-18B-24B
Servo Flex SFC (SFC-050DA2-18B-24B)
Part Number: SFC-050DA2-18B-24B
Uses lightweight, high-strength aluminum alloy for clamp hub. Extremely high torsional rigidity supporting high responsiveness.
Configured Specifications
| Type | Type of Flat Springs | Allowable Misalignment | Angular Misalignment / Eccentricity / Axial Misalignment |
|---|---|---|---|
| Application | Servo Motor / Stepping Motor / Encoder | Allowable Torque Range(N?m) | 20.01 to 50.00 |
| Hole diameter d1(mm) | 18 | Hole diameter d2(mm) | 24 |
| O.D.(?) | 56 | Full Length(mm) | 59.8 |
| Maximum Rotational Speed Range(r/min) | 4001~10000 | Features | High torsional rigidity / High Torque / High accuracy / High durability / Backlash 0 / Low Inertia Moment / Small |
| Body Material | Aluminum | Category | Coupling body |
| Allowable Torque(N?m) | 25 | Maximum Rotation Speed(r/min) | 10000 |
| Allowable Angular Misalignment(deg) | 2 | Allowable Lateral Misalignment Range(mm) | 0.21 to 0.40 |
| Allowable Lateral Misalignment(mm) | 0.28 | Disc Part Material | Stainless Steel |
| Operating Temperature Range(°C) | -30～100 | Allowable Axial Clearance (±)(mm) | 0.4 |
| Moment of Inertia(kg·m2) | 118.9×10-6 | Mounting Method | Clamping |
| The size of the tapered adapter(mm) | - | Keyway Standard | - |
| Disc Specifications | Double | Allowable Angular Misalignment Detail(deg) | 1 (one side) |
