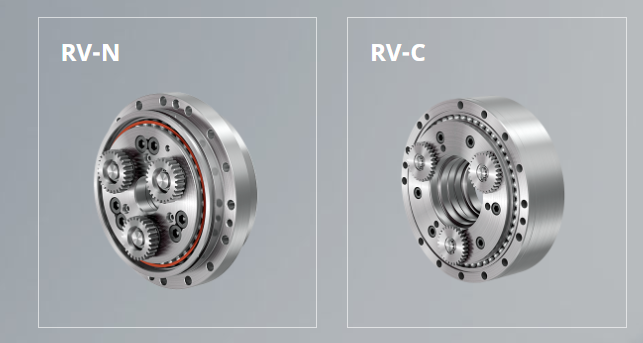

日本帝人NABTESCO納博特斯克減速機RV-500N-252.33
發布時間：2024-09-28
日本帝人NABTESCO納博特斯克減速機RV-500N-252.33
日本帝人NABTESCO納博特斯克減速機RV-500N-252.33
日本帝人NABTESCO納博特斯克減速機RV-500N-252.33
日本帝人NABTESCO納博特斯克減速機RV-500N-252.33
日本帝人NABTESCO納博特斯克減速機RV-500N-252.33
Basic model of the precision reduction gear that holds the world's top share with 7.0 million units produced.

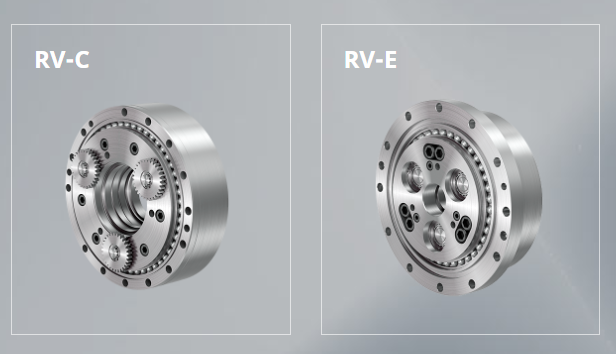

Domestically produced precision reduction gear that has excellent accuracy, rigidity, torque, and load sup capabilities. The RV-E series is highly regarded for its reliability and has the number one market share in the world for precision reduction gears. In 2016, cumulative production exceeded 6.0 million units.
Product Features
Backlash less than 1 arc.min.
Lost motion less than 1 arc.min.
Internal main bearing
Spec Information
| Model |
|---|
| RV-6E |
|---|
| RV-6E |
| RV-6E |
| RV-6E |
| RV-6E |
| RV-6E |
| RV-20E |
| RV-20E |
| RV-20E |
| RV-20E |
| RV-20E |
| RV-20E |
| RV-40E |
| RV-40E |
| RV-40E |
| RV-40E |
| RV-40E |
| RV-80E |
| RV-80E |
| RV-80E |
| RV-80E |
| RV-80E |
| RV-110E |
| RV-110E |
| RV-110E |
| RV-110E |
| RV-160E |
| RV-160E |
| RV-160E |
| RV-160E |
| RV-160E |
| RV-320E |
| RV-320E |
| RV-320E |
| RV-320E |
| RV-320E |
| RV-320E |
| RV-320E |
| RV-450E |
| RV-450E |
| RV-450E |
| RV-450E |
| RV-450E |
| RV-450E |
| RV-450E |
| w number (kw) | Ratio
| Actual Ratio
| Rated Torque （N?m） | Allowable Scceleration/Deceleration Torque （N?m） | Rated Output Speed （r.p.m.） | Rated life （hr） | Backlash (arc.min.) | Lost Motion (arc.min.) | Torsional Regidity (Nm/arc.min.) | Moment Rejidity (Nm/arc.min.) | Moment of Inertia (kg?m^2) | Mass (kg) | Allowable Moment 1 (N?m) |
|---|
| 0.25 | 31 | 31 | 58 | 117 | 30 | 6,000 | less than 1.5 | less than 1.5 | 20 | 117 | 0.00000263 | 2.5 | 196 |
| 0.25 | 43 | 43 | 58 | 117 | 30 | 6,000 | less than 1.5 | less than 1.5 | 20 | 117 | 0.000002 | 2.5 | 196 |
| 0.25 | 53.5 | 53.5 | 58 | 117 | 30 | 6,000 | less than 1.5 | less than 1.5 | 20 | 117 | 0.00000153 | 2.5 | 196 |
| 0.25 | 59 | 59 | 58 | 117 | 30 | 6,000 | less than 1.5 | less than 1.5 | 20 | 117 | 0.00000139 | 2.5 | 196 |
| 0.25 | 79 | 79 | 58 | 117 | 30 | 6,000 | less than 1.5 | less than 1.5 | 20 | 117 | 0.00000109 | 2.5 | 196 |
| 0.25 | 103 | 103 | 58 | 117 | 30 | 6,000 | less than 1.5 | less than 1.5 | 20 | 117 | 0.00000074 | 2.5 | 196 |
| 0.35 | 57 | 57 | 167 | 412 | 15 | 6,000 | less than 1 | less than 1 | 49 | 372 | 0.00000966 | 4.7 | 882 |
| 0.35 | 81 | 81 | 167 | 412 | 15 | 6,000 | less than 1 | less than 1 | 49 | 372 | 0.00000607 | 4.7 | 882 |
| 0.35 | 105 | 105 | 167 | 412 | 15 | 6,000 | less than 1 | less than 1 | 49 | 372 | 0.00000432 | 4.7 | 882 |
| 0.35 | 121 | 121 | 167 | 412 | 15 | 6,000 | less than 1 | less than 1 | 49 | 372 | 0.00000356 | 4.7 | 882 |
| 0.35 | 141 | 141 | 167 | 412 | 15 | 6,000 | less than 1 | less than 1 | 49 | 372 | 0.00000288 | 4.7 | 882 |
| 0.35 | 161 | 161 | 167 | 412 | 15 | 6,000 | less than 1 | less than 1 | 49 | 372 | 0.00000239 | 4.7 | 882 |
| 0.86 | 57 | 57 | 412 | 1,029 | 15 | 6,000 | less than 1 | less than 1 | 108 | 931 | 0.0000325 | 9.3 | 1,666 |
| 0.86 | 81 | 81 | 412 | 1,029 | 15 | 6,000 | less than 1 | less than 1 | 108 | 931 | 0.000022 | 9.3 | 1,666 |
| 0.86 | 105 | 105 | 412 | 1,029 | 15 | 6,000 | less than 1 | less than 1 | 108 | 931 | 0.0000163 | 9.3 | 1,666 |
| 0.86 | 121 | 121 | 412 | 1,029 | 15 | 6,000 | less than 1 | less than 1 | 108 | 931 | 0.0000137 | 9.3 | 1,666 |
| 0.86 | 153 | 153 | 412 | 1,029 | 15 | 6,000 | less than 1 | less than 1 | 108 | 931 | 0.0000101 | 9.3 | 1,666 |
| 1.64 | 57 | 57 | 784 | 1,960 | 15 | 6,000 | less than 1 | less than 1 | 196 | 1,176 | 0.0000816 | 13.1 | 2,156 |
| 1.64 | 81 | 81 | 784 | 1,960 | 15 | 6,000 | less than 1 | less than 1 | 196 | 1,176 | 0.00006 | 13.1 | 2,156 |
| 1.64 | 101 | 101 | 784 | 1,960 | 15 | 6,000 | less than 1 | less than 1 | 196 | 1,176 | 0.0000482 | 13.1 | 2,156 |
| 1.64 | 121 | 121 | 784 | 1,960 | 15 | 6,000 | less than 1 | less than 1 | 196 | 1,176 | 0.0000396 | 13.1 | 2,156 |
| 1.64 | 153 | 153 | 784 | 1,960 | 15 | 6,000 | less than 1 | less than 1 | 196 | 1,176 | 0.0000298 | 13.1 | 2,156 |
| 2.26 | 81 | 81 | 1,078 | 2,695 | 15 | 6,000 | less than 1 | less than 1 | 294 | 1,470 | 0.0000988 | 17.4 | 2,940 |
| 2.26 | 111 | 111 | 1,078 | 2,695 | 15 | 6,000 | less than 1 | less than 1 | 294 | 1,470 | 0.0000696 | 17.4 | 2,940 |
| 2.26 | 161 | 161 | 1,078 | 2,695 | 15 | 6,000 | less than 1 | less than 1 | 294 | 1,470 | 0.0000436 | 17.4 | 2,940 |
| 2.26 | 175.28 | 175.2857143 | 1,078 | 2,695 | 15 | 6,000 | less than 1 | less than 1 | 294 | 1,470 | 0.0000389 | 17.4 | 2,940 |
| 3.28 | 81 | 81 | 1,568 | 3,920 | 15 | 6,000 | less than 1 | less than 1 | 392 | 2,940 | 0.000177 | 26.4 | 3,920 |
| 3.28 | 101 | 101 | 1,568 | 3,920 | 15 | 6,000 | less than 1 | less than 1 | 392 | 2,940 | 0.00014 | 26.4 | 3,920 |
| 3.28 | 129 | 129 | 1,568 | 3,920 | 15 | 6,000 | less than 1 | less than 1 | 392 | 2,940 | 0.000106 | 26.4 | 3,920 |
| 3.28 | 145 | 145 | 1,568 | 3,920 | 15 | 6,000 | less than 1 | less than 1 | 392 | 2,940 | 0.000087 | 26.4 | 3,920 |
| 3.28 | 171 | 171 | 1,568 | 3,920 | 15 | 6,000 | less than 1 | less than 1 | 392 | 2,940 | 0.000074 | 26.4 | 3,920 |
| 6.57 | 81 | 81 | 3,136 | 7,840 | 15 | 6,000 | less than 1 | less than 1 | 980 | 4,900 | 0.000483 | 44.3 | 7,056 |
| 6.57 | 101 | 101 | 3,136 | 7,840 | 15 | 6,000 | less than 1 | less than 1 | 980 | 4,900 | 0.000379 | 44.3 | 7,056 |
| 6.57 | 118.5 | 118.5 | 3,136 | 7,840 | 15 | 6,000 | less than 1 | less than 1 | 980 | 4,900 | 0.000315 | 44.3 | 7,056 |
| 6.57 | 129 | 129 | 3,136 | 7,840 | 15 | 6,000 | less than 1 | less than 1 | 980 | 4,900 | 0.000284 | 44.3 | 7,056 |
| 6.57 | 141 | 141 | 3,136 | 7,840 | 15 | 6,000 | less than 1 | less than 1 | 980 | 4,900 | 0.000254 | 44.3 | 7,056 |
| 6.57 | 171 | 171 | 3,136 | 7,840 | 15 | 6,000 | less than 1 | less than 1 | 980 | 4,900 | 0.000197 | 44.3 | 7,056 |
| 6.57 | 185 | 185 | 3,136 | 7,840 | 15 | 6,000 | less than 1 | less than 1 | 980 | 4,900 | 0.000177 | 44.3 | 7,056 |
| 9.24 | 81 | 81 | 4,410 | 11,025 | 15 | 6,000 | less than 1 | less than 1 | 1,176 | 7,448 | 0.000875 | 66.4 | 8,820 |
| 9.24 | 101 | 101 | 4,410 | 11,025 | 15 | 6,000 | less than 1 | less than 1 | 1,176 | 7,448 | 0.000691 | 66.4 | 8,820 |
| 9.24 | 118.5 | 118.5 | 4,410 | 11,025 | 15 | 6,000 | less than 1 | less than 1 | 1,176 | 7,448 | 0.000575 | 66.4 | 8,820 |
| 9.24 | 129 | 129 | 4,410 | 11,025 | 15 | 6,000 | less than 1 | less than 1 | 1,176 | 7,448 | 0.00052 | 66.4 | 8,820 |
| 9.24 | 154.8 | 154.8461538 | 4,410 | 11,025 | 15 | 6,000 | less than 1 | less than 1 | 1,176 | 7,448 | 0.000412 | 66.4 | 8,820 |
| 9.24 | 171 | 171 | 4,410 | 11,025 | 15 | 6,000 | less than 1 | less than 1 | 1,176 | 7,448 | 0.000361 | 66.4 | 8,820 |
| 9.24 | 192.4 | 192.4285714 | 4,410 | 11,025 | 15 | 6,000 |
